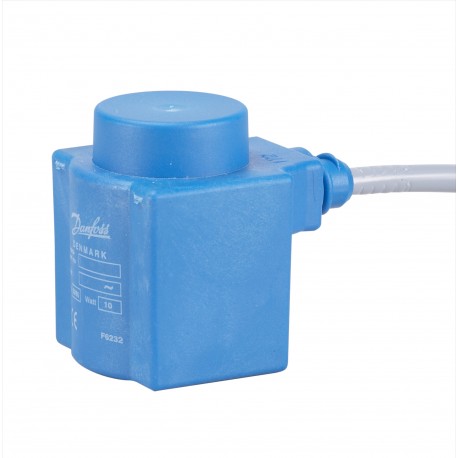

018F6251 DANFOSS REFRIGERATION COIL 220/230V 50HZ 10W w.1M Cable
BF230AS
018F6251
DANFOSS REFRIGERATION
1 unit
Automation > DANFOSS REFRIGERATION Products
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Solenoid coil type BF230AS DANFOSS REFRIGERATION COIL 220/230V 50HZ 10W w.1M Cable energizes refrigeration solenoid valves to control the flow of refrigerants and gases. This replacement electrical operator slides securely over compatible valve stems to restore automated switching functionality. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Gross weight: 0.354 Kilogram
- Net weight: 0.297 Kilogram
- Volume: 0.86 Liter
- EAN: 5702428024815
- Type: BF230AS
- Product group: Solenoid valves
- Product Name Description: Solenoid coil
- Actuator size: 13.5 mm
- Ambient temperature range [°C] [max]: 80 °C
More info
▲Electrical connection: Cable, Supply voltage [V] AC: 220 - 230, Frequency [Hz]: 50 Hz, Enclosure rating IP: IP67
Product details
| Gross weight | 0.354 Kilogram |
| Net weight | 0.297 Kilogram |
| Volume | 0.86 Liter |
| EAN | 5702428024815 |
| Type | BF230AS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Gross weight | 0.354 Kilogram |
| Net weight | 0.297 Kilogram |
| Volume | 0.86 Liter |
| EAN | 5702428024815 |
| Type | BF230AS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | LLC CDC TYSK |
| Cable diameter [mm] | 6.6 mm |
| Cable length [in] | 40 in |
| Cable length [m] | 1 m |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | Cable |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 3 x 0.75 mm2 |
| Contains batteries | No |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connector | 3 core cable |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50 Hz |
| Identical product | 018F8201 |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B |
| Power consumption 50Hz [VA] | 22 VA |
| Power consumption [W] 50Hz | 12 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 100 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Serviceable | No |
| Spare part number | 018F6251 |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type designation | BF230AS |
| Actuator size | 13.5 mm |
| Ambient temperature range [°C] [max] | 80 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | LLC CDC TYSK |
| Cable diameter [mm] | 6.6 mm |
| Cable length [in] | 40 in |
| Cable length [m] | 1 m |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | Cable |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Conductor area [mm2] | 3 x 0.75 mm2 |
| Contains batteries | No |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connector | 3 core cable |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50 Hz |
| Identical product | 018F8201 |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV210B EV212B EV220B 15 - 50 EV220B 6 - 22 EV220B 65 - 100 EV222B EV224B EV227B EV250B EV251B |
| Power consumption 50Hz [VA] | 22 VA |
| Power consumption [W] 50Hz | 12 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 100 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Serviceable | No |
| Spare part number | 018F6251 |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type designation | BF230AS |
