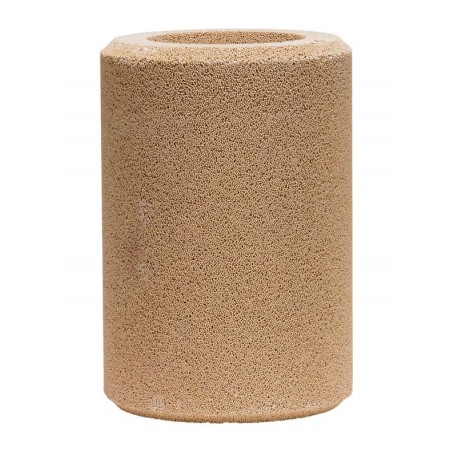

DANFOSS REFRIGERATION 023U4381 023U4381 DANFOSS REFRIGERATION Filter drier, core View larger
Images are for illustrative purposes only. Please refer to data sheet for details

023U4381 DANFOSS REFRIGERATION Filter drier, core

023U4381

023U4381

DANFOSS REFRIGERATION

1 unit


Automation > DANFOSS REFRIGERATION Products

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 023U4381 DANFOSS REFRIGERATION Filter drier, core protects closed-loop refrigeration circuits by absorbing harmful moisture, acids, and solid contaminants. Technicians install replaceable filter cores in liquid lines to safeguard sensitive expansion valves and compressors against premature failure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Gross weight: 0.712 Kilogram
  • Net weight: 0.709 Kilogram
  • Volume: 2.11 Liter
  • EAN: 5702428004893
  • Type: DC
  • Product group: Filter driers
  • Product Name Description: Filter drier, core
  • Gross weight: 0.712 Kilogram
  • Net weight: 0.709 Kilogram
  • Volume: 2.11 Liter
  • EAN: 5702428004893
  • Type: DC
  • Product group: Filter driers
  • Product Name Description: Filter drier, core
  • Acid capacity [g]: 9.09 g
  • Acid capacity [oz]: 0.321 oz

More info

▲

Product Type: DC, 20 %, Gasket included: Yes

Product details

Gross weight0.712 Kilogram
Net weight0.709 Kilogram
Volume2.11 Liter
EAN5702428004893
TypeDC
Product groupFilter driers
Product Name DescriptionFilter drier, core
Gross weight0.712 Kilogram
Net weight0.709 Kilogram
Volume2.11 Liter
EAN5702428004893
TypeDC
Product groupFilter driers
Product Name DescriptionFilter drier, core

Acid capacity [g]9.09 g
Acid capacity [oz]0.321 oz
Activated alumina [%]20 %
BrandELIMINATOR
China RoHS complianceYes
China RoHS exemption clauseNo
Contains batteriesNo
Core Size code48 cu.in.
Core typeSolid core
Drying Cap[Drops of Water]24°CR1234ze: 1386
R134a: 1296
R404A: 1350
R407C: 1259
R410A: 1174
R452A: 1339
R507: 1414
Drying Cap[Drops of Water]52°CR1234ze: 1246
R134a: 1187
R404A: 1279
R407C: 1160
R410A: 1044
R452A: 1248
R507: 1272
EU RoHS complianceYes
EU RoHS exemption clauseNo
Filter applicationStd Moisture & Acid Capacity
Gasket includedYes
Lubricants compatibilityOilfree applications
Molecular sieve [%]80 %
Oil free refrigerantsR1234ze(E)
R134a
R513A
R515A
R516A
Packing formatIndustrial pack
Parts included1 x Gasket (023U0743)
2 x Felt gasket (633L5312)
Parts Program nameDCR
Quantity per packing format8 pc
REACH Candidate List substancesNo
RefrigerantsR134a
R22/R407C
R290
R401A
R402A
R404A
R409A
R410A
R421A
R422D
R502
R507A
Solid core surface [cm2]612 cm²
Solid core surface [in2]95 in²
Solid core volume [cm3]727 cm³
Solid core volume [in3]44 in³
Type designation48-DC
Acid capacity [g]9.09 g
Acid capacity [oz]0.321 oz
Activated alumina [%]20 %
BrandELIMINATOR
China RoHS complianceYes
China RoHS exemption clauseNo
Contains batteriesNo
Core Size code48 cu.in.
Core typeSolid core
Drying Cap[Drops of Water]24°CR1234ze: 1386
R134a: 1296
R404A: 1350
R407C: 1259
R410A: 1174
R452A: 1339
R507: 1414
Drying Cap[Drops of Water]52°CR1234ze: 1246
R134a: 1187
R404A: 1279
R407C: 1160
R410A: 1044
R452A: 1248
R507: 1272
EU RoHS complianceYes
EU RoHS exemption clauseNo
Filter applicationStd Moisture & Acid Capacity
Gasket includedYes
Lubricants compatibilityOilfree applications
Molecular sieve [%]80 %
Oil free refrigerantsR1234ze(E)
R134a
R513A
R515A
R516A
Packing formatIndustrial pack
Parts included1 x Gasket (023U0743)
2 x Felt gasket (633L5312)
Parts Program nameDCR
Quantity per packing format8 pc
REACH Candidate List substancesNo
RefrigerantsR134a
R22/R407C
R290
R401A
R402A
R404A
R409A
R410A
R421A
R422D
R502
R507A
Solid core surface [cm2]612 cm²
Solid core surface [in2]95 in²
Solid core volume [cm3]727 cm³
Solid core volume [in3]44 in³
Type designation48-DC
