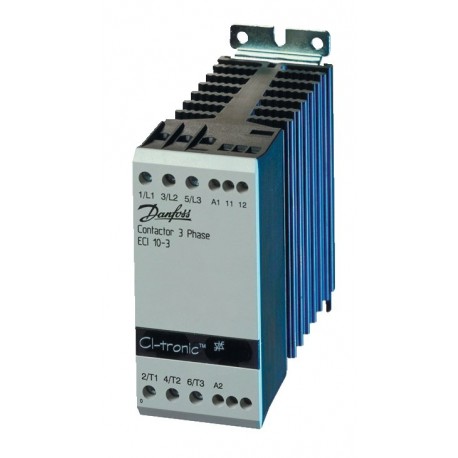

ECI 10-3 037N0027 DANFOSS CONTROLES INDUSTRIALES ECI 10-3 Electronic contactor M/12
ECI 10-3
ECI 10-3
DANFOSS INDUSTRIAL AUTOMATION
1 unit
Automation > Electronic contactors
ECI, CI-tronic Contactors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An electronic contactor handles rapid switching operations for industrial automation loads, leveraging solid-state technology to ensure long service life in demanding manufacturing processes.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Gross weight: 0.69 Kg
- Net weight: 0.69 Kg
- EAN: 5702423108565
- Approval: CE EAC LLC CDC TYSK UL
- Coil voltage @ 50/60 Hz [Max]: 230 V
- Coil voltage @ 50/60 Hz [Min]: 24 V
- Coil voltage [V] DC [Max]: 230 V
- Coil voltage [V] DC [Min]: 24 V
- Control voltage [V] DC [Max]: 230 V
- Control voltage [V] DC [Min]: 24 V
- Control voltage, 50/60 Hz [V] [Max]: 230 V
- Control voltage, 50/60 Hz [V] [Min]: 24 V
- Controlled phases: 3
- Max. load [A]: 10 A
- Packing format: Multi pack
- Product description: Electronic Contactor
More info
▲| Gross weight | 0.69 Kg |
| Net weight | 0.69 Kg |
| EAN | 5702423108565 |
| Approval | CE EAC LLC CDC TYSK UL |
| Coil voltage @ 50/60 Hz [Max] | 230 V |
| Coil voltage @ 50/60 Hz [Min] | 24 V |
| Coil voltage [V] DC [Max] | 230 V |
| Coil voltage [V] DC [Min] | 24 V |
| Control voltage [V] DC [Max] | 230 V |
| Control voltage [V] DC [Min] | 24 V |
| Control voltage, 50/60 Hz [V] [Max] | 230 V |
| Control voltage, 50/60 Hz [V] [Min] | 24 V |
| Controlled phases | 3 |
| Max. load [A] | 10 A |
| Packing format | Multi pack |
| Product description | Electronic Contactor |
| Product Group | Contactors and motor starters |
| Product name | Electronic contactor |
| Product type | ECI 10-3 |
| Quantity per packing format | 12 pc |
| Supply voltage [V] AC | 400 V |
| UL approval file name | E198251 |
