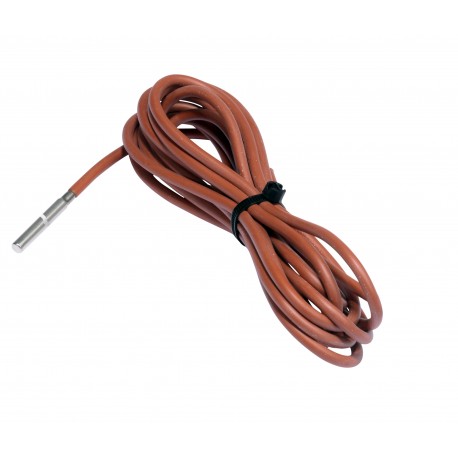

MBT153 084Z6035 DANFOSS CONTROLES INDUSTRIALES Sensor MBT 153-0200-0850
MBT153
MBT153
DANFOSS INDUSTRIAL AUTOMATION
1 unit
Automation > Temperature sensors
Sensors Type MBT 153
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Danfoss Industrial Automation MBT153 084Z6035 DANFOSS CONTROLES INDUSTRIALES Sensor MBT 153-0200-0850 is a precision temperature sensor utilized in industrial plants to capture accurate thermal data from fluid lines and machinery components. Sensors form the foundational input layer for automation systems, providing continuous feedback necessary for process control and instrumentation loops. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Gross weight: 0.302 Kilogram
- Net weight: 0.264 Kilogram
- Volume: 0.68 Liter
- EAN: 5702423153374
- Type: MBT 153
- Product group: Sensors
- Product Name Description: Temperature sensor
- Approval: CE
- Cable length [in]: 335 in
More info
▲Measuring range [°C]: -50 - 100, Electrical connection: Cable, Cable type: PVC
Product details
| Gross weight | 0.302 Kilogram |
| Net weight | 0.264 Kilogram |
| Volume | 0.68 Liter |
| EAN | 5702423153374 |
| Type | MBT 153 |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Gross weight | 0.302 Kilogram |
| Net weight | 0.264 Kilogram |
| Volume | 0.68 Liter |
| EAN | 5702423153374 |
| Type | MBT 153 |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Approval | CE |
| Cable length [in] | 335 in |
| Cable length [m] | 8.5 m |
| Cable tempr. range [°C] [max] | 100 °C |
| Cable tempr. range [°C] [min] | -40 °C |
| Cable tempr. range [°F] [max] | 212 °F |
| Cable tempr. range [°F] [min] | -40 °F |
| Cable type | PVC |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP68 |
| EU RoHS compliance | Yes |
| In scope of WEEE | Yes |
| Insertion type | Variable |
| Measuring range [°C] [max] | 100 °C |
| Measuring range [°C] [min] | -50 °C |
| Measuring range [°F] [max] | 212 °F |
| Measuring range [°F] [min] | -58 °F |
| Output signal | Ohm |
| Packing format | Multi pack |
| Protection tube diameter [in] | 0.236 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | AISI 305 |
| Quantity per packing format | 5 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -58 °F |
| Type designation | MBT 153-0200-0850 |
| Wires [pcs] | 2 pc |
| Approval | CE |
| Cable length [in] | 335 in |
| Cable length [m] | 8.5 m |
| Cable tempr. range [°C] [max] | 100 °C |
| Cable tempr. range [°C] [min] | -40 °C |
| Cable tempr. range [°F] [max] | 212 °F |
| Cable tempr. range [°F] [min] | -40 °F |
| Cable type | PVC |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP68 |
| EU RoHS compliance | Yes |
| In scope of WEEE | Yes |
| Insertion type | Variable |
| Measuring range [°C] [max] | 100 °C |
| Measuring range [°C] [min] | -50 °C |
| Measuring range [°F] [max] | 212 °F |
| Measuring range [°F] [min] | -58 °F |
| Output signal | Ohm |
| Packing format | Multi pack |
| Protection tube diameter [in] | 0.236 in |
| Protection tube diameter [mm] | 6 mm |
| Protection tube material | AISI 305 |
| Quantity per packing format | 5 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -58 °F |
| Type designation | MBT 153-0200-0850 |
| Wires [pcs] | 2 pc |
