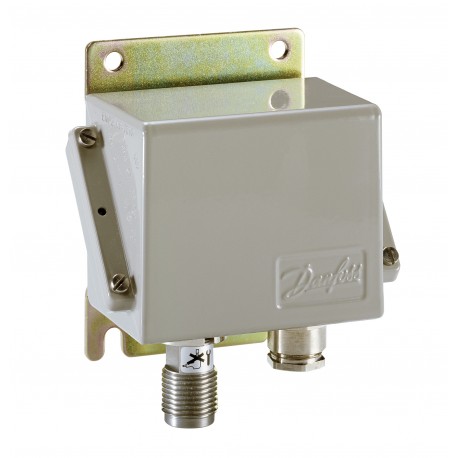

DANFOSS INDUSTRIAL AUTOMATION EMP2 EMP2 084G2108 DANFOSS CONTROLES INDUSTRIALES Sensor EMP 2-1811-F6CD24-2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EMP2 084G2108 DANFOSS CONTROLES INDUSTRIALES Sensor EMP 2-1811-F6CD24-2

EMP2

EMP2

DANFOSS INDUSTRIAL AUTOMATION

1 unit


Automation > Pressure Transmitters
Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The EMP2 084G2108 DANFOSS CONTROLES INDUSTRIALES Sensor EMP 2-1811-F6CD24-2 from Danfoss Industrial Automation functions as a pressure transmitter designed to translate physical media pressure into standardized industrial control signals. Engineers rely on these devices to regulate closed-loop systems and monitor critical thresholds. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Gross weight: 1.059 Kilogram
  • Net weight: 0.98 Kilogram
  • Volume: 2.518 Liter
  • EAN: 5702423016389
  • Type: EMP 2
  • Product group: Sensors
  • Product Name Description: Pressure transmitter
  • + supply: P
  • - common: N

More info

▲

Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Terminal block, Pressure connection type: G, Pressure connection size: 1/2, Specification key: EMP 2-1811-F6CD24-2

Product details

Gross weight1.059 Kilogram
Net weight0.98 Kilogram
Volume2.518 Liter
EAN5702423016389
TypeEMP 2
Product groupSensors
Product Name DescriptionPressure transmitter
Gross weight1.059 Kilogram
Net weight0.98 Kilogram
Volume2.518 Liter
EAN5702423016389
TypeEMP 2
Product groupSensors
Product Name DescriptionPressure transmitter

+ supplyP
- commonN
Accuracy, max. [±FS%]1 %
Accuracy, typical [±FS%]0.5 %
ApprovalABS
BV
CCS
DNV
GL
GOST POCC
KR
LR
NNK
RINA
CE
CE markYes
China RoHS complianceOut of scope
Compensated temp. range [°C] [max]70 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]158 °F
Compensated temp. range [°F] [min]32 °F
Contains batteriesNo
Electrical connectionTerminal block
Electrical connection sizePg 13.5
Enclosure rating IPIP65
EU RoHS complianceYes with exemptions
EU RoHS exemption clause7(c)-I
Flush diaphragmNo
High Clipping Level22.4
International Article Number5702423016389
Intrinsically safeNo
Low Clipping level3.6
Medium temperature range [°C] [max]70 °C
Medium temperature range [°C] [min]-10 °C
Medium temperature range [°F] [max]158 °F
Medium temperature range [°F] [min]14 °F
Non-linearity BFSL [±FS%]0.3 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]60 bar
Packing formatMulti pack
Pressure connection notesEXT. G1/4 INT
Pressure connection size1/2
Pressure connection standardEN 228-1
Pressure connection typeG
Pressure Male/FemaleMale/Female
Pressure range [bar] [max]6 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]87 psi
Pressure range [psi] [min]0 psi
Pressure referenceGauge (relative)
Pulse-snubberYes
Quantity per packing format8 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Response time max. [ms]4 ms
SCIP dossier no.6010d1e2-f473-4af2-afdd-bb494bdd0100
SCIP dossier product nameEMP
Specification keyEMP 2-1811-F6CD24-2
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]12 V
UL markYes
+ supplyP
- commonN
Accuracy, max. [±FS%]1 %
Accuracy, typical [±FS%]0.5 %
ApprovalABS
BV
CCS
DNV
GL
GOST POCC
KR
LR
NNK
RINA
CE
CE markYes
China RoHS complianceOut of scope
Compensated temp. range [°C] [max]70 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]158 °F
Compensated temp. range [°F] [min]32 °F
Contains batteriesNo
Electrical connectionTerminal block
Electrical connection sizePg 13.5
Enclosure rating IPIP65
EU RoHS complianceYes with exemptions
EU RoHS exemption clause7(c)-I
Flush diaphragmNo
High Clipping Level22.4
International Article Number5702423016389
Intrinsically safeNo
Low Clipping level3.6
Medium temperature range [°C] [max]70 °C
Medium temperature range [°C] [min]-10 °C
Medium temperature range [°F] [max]158 °F
Medium temperature range [°F] [min]14 °F
Non-linearity BFSL [±FS%]0.3 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]60 bar
Packing formatMulti pack
Pressure connection notesEXT. G1/4 INT
Pressure connection size1/2
Pressure connection standardEN 228-1
Pressure connection typeG
Pressure Male/FemaleMale/Female
Pressure range [bar] [max]6 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]87 psi
Pressure range [psi] [min]0 psi
Pressure referenceGauge (relative)
Pulse-snubberYes
Quantity per packing format8 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Response time max. [ms]4 ms
SCIP dossier no.6010d1e2-f473-4af2-afdd-bb494bdd0100
SCIP dossier product nameEMP
Specification keyEMP 2-1811-F6CD24-2
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]12 V
UL markYes
