> DANFOSS INDUSTRIAL AUTOMATION > Pressure Transmitters - DANFOSS INDUSTRIAL AUTOMATION > transmitter for general purpose Type MBS 1750 > MBS1750

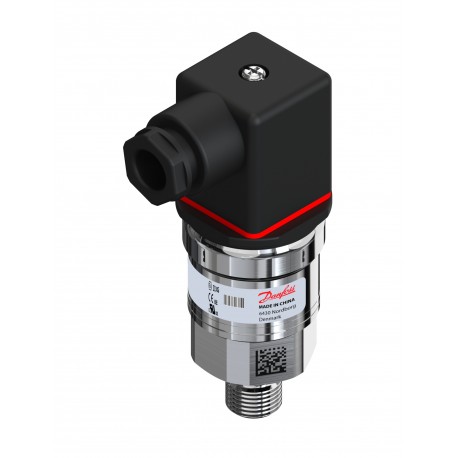

DANFOSS INDUSTRIAL AUTOMATION MBS1750 MBS1750 060G6111 DANFOSS CONTROLES INDUSTRIALES Sensor MBS 1750-3631-A1GB04-2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MBS1750 060G6111 DANFOSS CONTROLES INDUSTRIALES Sensor MBS 1750-3631-A1GB04-2

MBS1750

MBS1750

DANFOSS INDUSTRIAL AUTOMATION

1 unit


Automation > Pressure Transmitters
transmitter for general purpose Type MBS 1750

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: Angular connector, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 1750-3631-A1GB04-2

Product details

Gross weight0.184 Kilogram
Net weight0.163 Kilogram
Volume0.408 Liter
EAN5702423295661
TypeMBS 1750
Product groupSensors
Product Name DescriptionPressure transmitter
Gross weight0.184 Kilogram
Net weight0.163 Kilogram
Volume0.408 Liter
EAN5702423295661
TypeMBS 1750
Product groupSensors
Product Name DescriptionPressure transmitter

+ supplyPin 1
- commonPin 2
Accuracy, max. [±FS%]1 %
Accuracy, typical [±FS%]0.5 %
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalCE
C UL US UL Recognized
Autofrettage Pressure1600 bar
CE markYes
China RoHS complianceOut of scope
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]176 °F
Compensated temp. range [°F] [min]32 °F
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/FemaleMale and Female
Electrical connectionAngular connector
Electrical connection sizePg 9
Electrical connection standardEN 175301-803-A
Enclosure rating IPIP65
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flush diaphragmNo
High Clipping Level22.4
In scope of WEEEYes
International Article Number5702423295661
Intrinsically safeNo
Low Clipping level3.6
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Non-linearity BFSL [±FS%]0.5 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]1500 bar
Packing formatMulti pack
Pressure connection HEX [mm]27 mm
Pressure connection size1/4
Pressure connection standardDIN 3852-E
ISO 1179-2 (Form E)
Pressure connection typeG
Pressure Male/FemaleMale
Pressure range [bar] [max]400 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]5800 psi
Pressure range [psi] [min]0 psi
Pressure referenceSealed gauge
Pulse-snubberYes
Quantity per packing format14 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product nameAKS/MBS
Specification keyMBS 1750-3631-A1GB04-2
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]9 V
UL markYes
+ supplyPin 1
- commonPin 2
Accuracy, max. [±FS%]1 %
Accuracy, typical [±FS%]0.5 %
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalCE
C UL US UL Recognized
Autofrettage Pressure1600 bar
CE markYes
China RoHS complianceOut of scope
Compensated temp. range [°C] [max]80 °C
Compensated temp. range [°C] [min]0 °C
Compensated temp. range [°F] [max]176 °F
Compensated temp. range [°F] [min]32 °F
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/FemaleMale and Female
Electrical connectionAngular connector
Electrical connection sizePg 9
Electrical connection standardEN 175301-803-A
Enclosure rating IPIP65
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flush diaphragmNo
High Clipping Level22.4
In scope of WEEEYes
International Article Number5702423295661
Intrinsically safeNo
Low Clipping level3.6
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Non-linearity BFSL [±FS%]0.5 %
Output signalCurrent
Output signal [mA] [max]20 mA
Output signal [mA] [min]4 mA
Overload pressure max. [bar]1500 bar
Packing formatMulti pack
Pressure connection HEX [mm]27 mm
Pressure connection size1/4
Pressure connection standardDIN 3852-E
ISO 1179-2 (Form E)
Pressure connection typeG
Pressure Male/FemaleMale
Pressure range [bar] [max]400 bar
Pressure range [bar] [min]0 bar
Pressure range [psi] [max]5800 psi
Pressure range [psi] [min]0 psi
Pressure referenceSealed gauge
Pulse-snubberYes
Quantity per packing format14 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product nameAKS/MBS
Specification keyMBS 1750-3631-A1GB04-2
Supply voltage [V] DC [max]32 V
Supply voltage [V] DC [min]9 V
UL markYes
