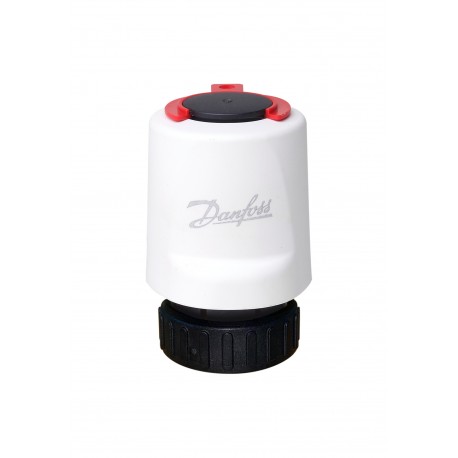

DANFOSS HEATING 088H3220 088H3220 DANFOSS HEATING Thermot 230V NC (M30x1.5) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

088H3220 DANFOSS HEATING Thermot 230V NC (M30x1.5)

088H3220

60

DANFOSS HEATING

60 units


Automation > DANFOSS HEATING Products

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A thermal actuators component, represented here by Danfoss Heating part number 088H3220, is an electrically driven valve operator used to control fluid flow in underfloor heating manifolds and terminal heating units. These devices translate control signals into linear valve stem movement to maintain precise thermal regulation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Gross weight: 0.134 Kilogram
  • Net weight: 0.13 Kilogram
  • Volume: 0.471 Liter
  • EAN: 5702425110122
  • Type: Thermot
  • Product group: Thermal actuators
  • Cable length [m]: 0.95 m
  • Connection size: M 30 x 1.5
  • Contains batteries: No
  • Description: Thermot M30x1.5 NC 230V

More info

▲

Thermot M30x1.5 NC 230V

Product details

Gross weight0.134 Kilogram
Net weight0.13 Kilogram
Volume0.471 Liter
EAN5702425110122
TypeThermot
Product groupThermal actuators
Gross weight0.134 Kilogram
Net weight0.13 Kilogram
Volume0.471 Liter
EAN5702425110122
TypeThermot
Product groupThermal actuators

Cable length [m]0.95 m
Connection sizeM 30 x 1.5
Contains batteriesNo
DescriptionThermot M30x1.5 NC 230V
End-switchNo
Frequency range [Hz] [Max]60 Hz
Frequency range [Hz] [Min]50 Hz
IP protection classIP41
Power consumption [W]2 W
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.b327c67d-baa9-4ada-ac2a-5471486730b4
SCIP dossier product nameThermot M30x1,5
Supply voltage [V] AC230 V
Valve functionNC
Cable length [m]0.95 m
Connection sizeM 30 x 1.5
Contains batteriesNo
DescriptionThermot M30x1.5 NC 230V
End-switchNo
Frequency range [Hz] [Max]60 Hz
Frequency range [Hz] [Min]50 Hz
IP protection classIP41
Power consumption [W]2 W
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.b327c67d-baa9-4ada-ac2a-5471486730b4
SCIP dossier product nameThermot M30x1,5
Supply voltage [V] AC230 V
Valve functionNC
