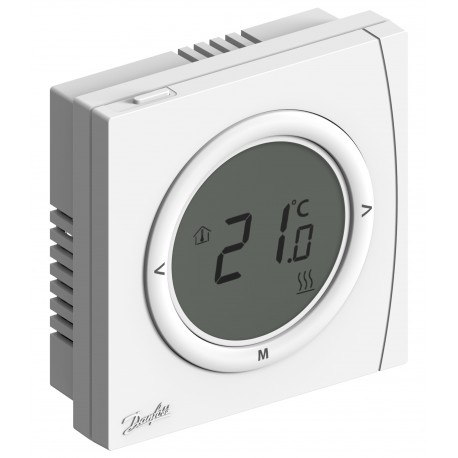

087N6476 DANFOSS HEATING RET2001M Digi Stat 230V, V2
087N6476
087N6476
DANFOSS HEATING
1 unit
Automation > DANFOSS HEATING Products
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 087N6476 DANFOSS HEATING RET2001M Digi Stat 230V, V2 functions as an electronic room thermostat configured to govern residential and commercial heating equipment based on ambient temperature feedback. Wall-mounted digital interfaces grant facility managers direct control over daily temperature profiles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Gross weight: 200 Gram
- Net weight: 129.8 Gram
- Volume: 0.69 Liter
- EAN: 5715162419151
- Type: RET2001
- Product group: Room Thermostats, RET
- Ambient temperature [°C] [max]: 40 °C
- Application: Room heating
- Approval: CE UKCA
- Back lit display: Yes
More info
▲RET2001M, Mains powered digital room electronic thermostat
Product details
| Gross weight | 200 Gram |
| Net weight | 129.8 Gram |
| Volume | 0.69 Liter |
| EAN | 5715162419151 |
| Type | RET2001 |
| Product group | Room Thermostats, RET |
| Gross weight | 200 Gram |
| Net weight | 129.8 Gram |
| Volume | 0.69 Liter |
| EAN | 5715162419151 |
| Type | RET2001 |
| Product group | Room Thermostats, RET |
| Ambient temperature [°C] [max] | 40 °C |
| Application | Room heating |
| Approval | CE UKCA |
| Back lit display | Yes |
| Backplate | Custom Backplate |
| Ball hardness test [°C] | 75 °C |
| Category name | Digital Thermostat |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour | White RAL 9010 |
| Contains batteries | No |
| Control pollution | Degree 2 |
| Control type | On/Off load compensation |
| Depth [mm] | 43 mm |
| Description | RET2001M, Mains powered digital room electronic thermostat |
| Design standard | EN 60730-2-9 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Frequency [Hz] | 50/60 Hz |
| Frost protection | Yes |
| Height [mm] | 86 mm |
| In scope of WEEE | Yes |
| Installation | 3 Wire |
| Material | ABS+PC, non-flammable |
| Modulating Control | Yes |
| Number of channels | 1 |
| On/Off control | Yes |
| On/off modulating control | Yes |
| Output relay rating inductive [A] | 1 A |
| Output relay rating resistive [A] | 3 A |
| Product description | RET2001M - V2 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 1076e053-04a2-4646-987d-f4036bc6aef1 |
| SCIP dossier product name | Electronic programmable room thermostat |
| Status indicator | Yes |
| Supply Type | 230Vac |
| Temperature limiter [°C] [Max] | 35 °C |
| Temperature limiter [°C] [Min] | 5 °C |
| Tolerance | ±10% |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 5 |
| Width [mm] | 86 mm |
| Ambient temperature [°C] [max] | 40 °C |
| Application | Room heating |
| Approval | CE UKCA |
| Back lit display | Yes |
| Backplate | Custom Backplate |
| Ball hardness test [°C] | 75 °C |
| Category name | Digital Thermostat |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Colour | White RAL 9010 |
| Contains batteries | No |
| Control pollution | Degree 2 |
| Control type | On/Off load compensation |
| Depth [mm] | 43 mm |
| Description | RET2001M, Mains powered digital room electronic thermostat |
| Design standard | EN 60730-2-9 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Frequency [Hz] | 50/60 Hz |
| Frost protection | Yes |
| Height [mm] | 86 mm |
| In scope of WEEE | Yes |
| Installation | 3 Wire |
| Material | ABS+PC, non-flammable |
| Modulating Control | Yes |
| Number of channels | 1 |
| On/Off control | Yes |
| On/off modulating control | Yes |
| Output relay rating inductive [A] | 1 A |
| Output relay rating resistive [A] | 3 A |
| Product description | RET2001M - V2 |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 1076e053-04a2-4646-987d-f4036bc6aef1 |
| SCIP dossier product name | Electronic programmable room thermostat |
| Status indicator | Yes |
| Supply Type | 230Vac |
| Temperature limiter [°C] [Max] | 35 °C |
| Temperature limiter [°C] [Min] | 5 °C |
| Tolerance | ±10% |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 5 |
| Width [mm] | 86 mm |
