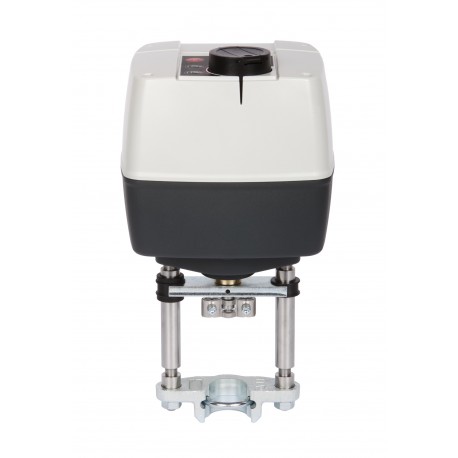

082G3455 DANFOSS HEATING AME 659 SD 230V
082G3455
082G3455
DANFOSS HEATING
1 unit
Automation > DANFOSS HEATING Products
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An 082G3455 DANFOSS HEATING AME 659 SD 230V acts as an electrical actuator designed to automatically control industrial valves and regulate fluid flow within large heating or district energy networks. Heavy-duty motorized positioning mechanisms provide precise modulation for high-capacity process lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Gross weight: 9.778 Kilogram
- Net weight: 9.778 Kilogram
- Volume: 18.296 Liter
- EAN: 5710104030470
- Type: AME 659 SD
- Product group: Electrical actuators
- Actuator speed [s/mm]: 2 s/mm 6 s/mm
- Actuator type: Electrical
- Ambient temperature [°C] [max]: 55 °C
- Ambient temperature [°C] [min]: 0 °C
More info
▲AME 659 SD 110-230V 2-6s/mm 50mm 2000N
Product details
| Gross weight | 9.778 Kilogram |
| Net weight | 9.778 Kilogram |
| Volume | 18.296 Liter |
| EAN | 5710104030470 |
| Type | AME 659 SD |
| Product group | Electrical actuators |
| Gross weight | 9.778 Kilogram |
| Net weight | 9.778 Kilogram |
| Volume | 18.296 Liter |
| EAN | 5710104030470 |
| Type | AME 659 SD |
| Product group | Electrical actuators |
| Actuator speed [s/mm] | 2 s/mm 6 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | HD District Heating |
| Closing force [N] | 2000 N |
| Contains batteries | No |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) - 10 V |
| Control input signal Y [V], impedance [kOhm] | 40 kOhm |
| Control signal type | Modulating/3-point |
| Description | AME 659 SD 110-230V 2-6s/mm 50mm 2000N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP54 |
| Manual operation | No |
| Position feedback | yes |
| Power consumption [W] | 38 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | Yes |
| SCIP dossier no. | 1383b0ac-9597-4acd-8949-becd4eb06779 |
| SCIP dossier product name | AMV(E) 65x/685/855_1 |
| Speed type | Standard |
| Spring down (return) | Yes |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 50 mm |
| Supply voltage [V] AC | 230 V |
| Actuator speed [s/mm] | 2 s/mm 6 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | HD District Heating |
| Closing force [N] | 2000 N |
| Contains batteries | No |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) - 10 V |
| Control input signal Y [V], impedance [kOhm] | 40 kOhm |
| Control signal type | Modulating/3-point |
| Description | AME 659 SD 110-230V 2-6s/mm 50mm 2000N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP54 |
| Manual operation | No |
| Position feedback | yes |
| Power consumption [W] | 38 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | Yes |
| SCIP dossier no. | 1383b0ac-9597-4acd-8949-becd4eb06779 |
| SCIP dossier product name | AMV(E) 65x/685/855_1 |
| Speed type | Standard |
| Spring down (return) | Yes |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 50 mm |
| Supply voltage [V] AC | 230 V |
