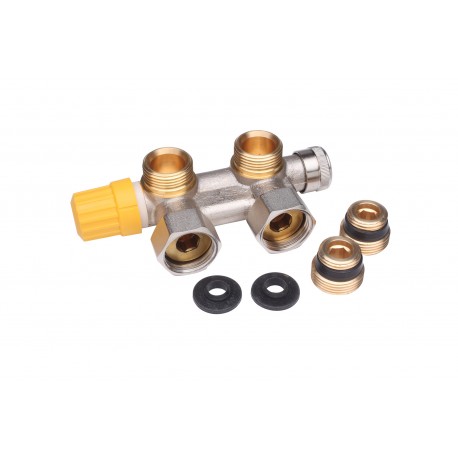

013G4741 DANFOSS HEATING VHS-UN-15 ANGLE
013G4741
013G4741
DANFOSS HEATING
1 unit
Automation > DANFOSS HEATING Products
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲VHS-UN 3/4" x 1/2" angle, nickel-plated with drain-off
Product details
| Gross weight | 0.768 Kilogram |
| Net weight | 0.768 Kilogram |
| Volume | 0.854 Liter |
| EAN | 5702420036106 |
| Type | VHS-UN |
| Product group | VHS valves |
| Gross weight | 0.768 Kilogram |
| Net weight | 0.768 Kilogram |
| Volume | 0.854 Liter |
| EAN | 5702420036106 |
| Type | VHS-UN |
| Product group | VHS valves |
| Application | 2-pipe system |
| CE evaluated | Out of scope |
| China RoHS compliance | Out of scope |
| Connection size in | G 3/4 A |
| Connection size out | G 1/2 A |
| Contains batteries | No |
| Description | VHS-UN 3/4" x 1/2" angle, nickel-plated with drain-off |
| Design | Angle |
| Differential pressure range [bar] [Max] | 0.6 bar |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow temperature [°C] [Max] | 120 °C |
| Kv measuring range | 0.02 - 0.48 |
| Kv value at setting 1 [m³/h] | 0.02 m³/h |
| Kv value at setting 2 [m³/h] | 0.04 m³/h |
| Kv value at setting 3 [m³/h] | 0.07 m³/h |
| Kv value at setting 4 [m³/h] | 0.12 m³/h |
| Kv value at setting 5 [m³/h] | 0.19 m³/h |
| Kv value at setting 6 [m³/h] | 0.27 m³/h |
| Kv value at setting 7 [m³/h] | 0.33 m³/h |
| Kv value at setting N [m³/h] | 0.48 m³/h |
| Kvs values [m³/h] | 0.57 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Recomended differential pressure [bar] [Max] | 0.2 bar |
| Recomended differential pressure [bar] [Min] | 0.05 bar |
| SCIP dossier no. | 6f9e51a8-fd6c-4a75-ae5e-979aa9b0fb6f |
| SCIP dossier product name | VHS-UN valve |
| Test pressure [bar] | 16 bar |
| UL evaluated | Out of scope |
| UNSPSC CODE | 40101801 |
| Valve size | 15 |
| Valve type | Normal flow |
| Working pressure [bar] [Max] | 10 bar |
