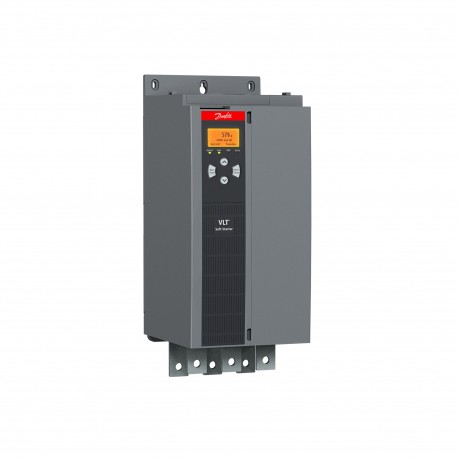

DANFOSS DRIVES 60144 136G8774 MCD60144BT5S2X00CV2 DANFOSS DRIVES MCD60144BT5S2X00CV2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

136G8774 MCD60144BT5S2X00CV2 DANFOSS DRIVES MCD60144BT5S2X00CV2

60144

60144

DANFOSS DRIVES

1 unit


Automation > SOFT STARTERS MCD
600 Analog Soft Starters

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Danfoss Drives MCD60144BT5S2X00CV2 soft starter regulates motor acceleration and deceleration to reduce mechanical stress and electrical surges in heavy-duty applications. Soft starters are widely integrated into industrial pump, fan, and conveyor systems to provide smooth, controlled starting profiles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Product View (Switch): GLBL
  • Product Group: MCD
  • MCD Series: 6
  • Current Rating: 0144
  • Bypass: B
  • Phase: T
  • Mains Voltage: 5
  • Enclosure: S2
  • Performance: X
  • IP Rating: 00
  • Control Voltage: CV2
  • Product Catalog: GLBL
  • ECCN EU: Y901
  • ECCN US: EAR99
  • Plant from Orderline: B901
  • Vendor: ERR01

More info

▲

MCD60144BT5S2X00CV2
VLT® Soft Starter MCD 600
With Int. Bypass Contactor
144 A, Three phase 200-525 V AC
Frame size 2, IP00
Control Voltage: 110~120 VAC or 220~240 VAC
Other options according to Model code

Product details

Gross weight12.7 Kilogram
Net weight12.7 Kilogram
Volume59.4 Liter
EAN5710108652746

Product View (Switch)GLBLGlobal (Standard)
Product GroupMCDMCD Soft Starter series
MCD Series6600 Series
Current Rating0144144 A
BypassBWith Int. Bypass Contactor
PhaseTThree phase
Mains Voltage5Three phase 200-525 V AC
EnclosureS2Frame size 2
PerformanceXReserved
IP Rating00IP00
Control VoltageCV2110~120 VAC or 220~240 VAC
Typecode Part 1MCD60144BT5S2X00CV2
Product CatalogGLBLGlobal (Standard)
Modelcode01MCD60144BT5S2X00CV2
Calculated Gross Weight [kg]13.5
Calculated Net Weight [kg]12.7
ECCN EUY901Y901
ECCN USEAR99EAR99
Plant from OrderlineB901B901
VendorERR01Cannot Determine Vendor
Producing plantERR01Cannot Determine Vendor
Delivering plantERR01ERR01
DrivePro categoryEXCHExchange Unit
