View larger
Images are for illustrative purposes only. Please refer to data sheet for details

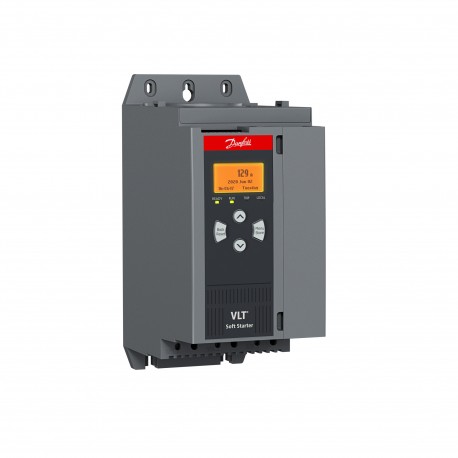

136G7347 MCD60042BT5S1X20CV2 DANFOSS DRIVES MCD60042BT5S1X20CV2
60042
60042
DANFOSS DRIVES
1 unit
Automation > SOFT STARTERS MCD
600 Analog Soft Starters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲MCD60042BT5S1X20CV2
VLT® Soft Starter MCD 600
With Int. Bypass Contactor
42 A, Three phase 200-525 V AC
Frame size 1, IP20
Control Voltage: 110~120 VAC or 220~240 VAC
Other options according to Model code
Product details
| Gross weight | 4.9 Kilogram | ||
| Net weight | 4.9 Kilogram | ||
| Volume | 17.589 Liter | ||
| EAN | 5710108638221 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | MCD | MCD Soft Starter series | |
| MCD Series | 6 | 600 Series | |
| Current Rating | 0042 | 42 A | |
| Bypass | B | With Int. Bypass Contactor | |
| Phase | T | Three phase | |
| Mains Voltage | 5 | Three phase 200-525 V AC | |
| Enclosure | S1 | Frame size 1 | |
| Performance | X | Reserved | |
| IP Rating | 20 | IP20 | |
| Control Voltage | CV2 | 110~120 VAC or 220~240 VAC | |
| Typecode Part 1 | MCD60042BT5S1X20CV2 | ||
| Product Catalog | GLBL | Global (Standard) | |
| Modelcode01 | MCD60042BT5S1X20CV2 | ||
| Calculated Gross Weight [kg] | 5.4 | ||
| Calculated Net Weight [kg] | 4.8 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | EAR99 | EAR99 | |
| Plant from Orderline | B901 | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Producing plant | ERR01 | Cannot Determine Vendor | |
| Delivering plant | ERR01 | ERR01 |
