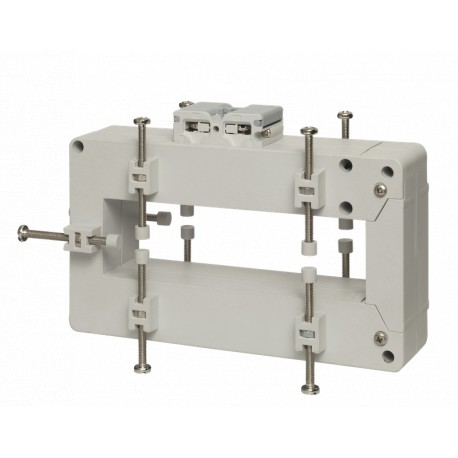

CTD9H30005AXXX CARLO GAVAZZI Selected parameters PRIMARY CURRENT 2500…4000A PRIMARY TYPE Solid-core SECONDAR..
CTD9H30005AXXX
25004000
CARLO GAVAZZI
1 Pcs.
Automation > Current transformer
Digital Panel Meters and temperature
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A solid-core through-feed current converter by Carlo Gavazzi, part number CTD9H30005AXXX, steps down massive primary currents to deliver safe, standardized secondary outputs for heavy industrial power metering. These robust transformers are fixed around high-capacity conductors within main distribution switchboards to support accurate data collection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Through-feed current converter
- Rated primary current (EF007405): 3000 A
- Rated secondary current (EF007471): 5 A
- Rated secondary apparent power (EF007470): 25 VA
- Opening diameter (EF005153): 36 mm
- Number of primary inputs (EF006947): 1
