View larger
Images are for illustrative purposes only. Please refer to data sheet for details

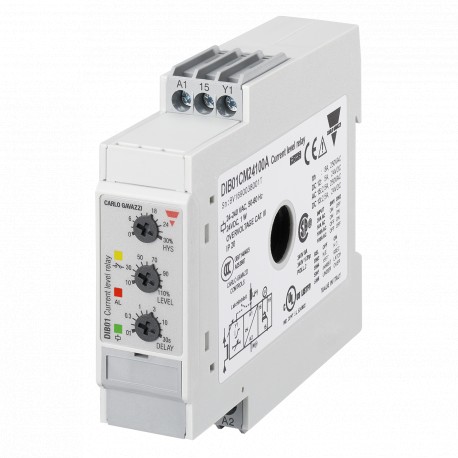

DIB01CM24100A CARLO GAVAZZI Selected parameters OUTPUT SIGNAL 1 relay SETPOINTS 1, adjustable MONITORED VARI..
DIB01CM24100A
24100
CARLO GAVAZZI
1 Pcs.
Selected parameters OUTPUT SIGNAL 1 relay SETPOINTS 1, adjustable MONITORED VARIABLE 1-phase AC/DC current monitoring Others SIZE 22,5 mm POWER SUPPLY RANGE 24÷240VAC and 24VDC MONITORING FUNCTION Over or under current MOUTING DIN-rail INPUT RANGE 100 A DELAY 1, adjustable
Single-phase control relay max. or min AC intensity, TRMS, Scale measured 2 to 100 ACA
1-phase AC over or undercurrent monitoring relay, input range 2-100 A AC, delay on alarm 0.1-30 s, SPDT relay output, 22.5 mm DIN-rail housing
Automation > Current monitoring relay
Monitoring Relays and Measurement Current Transformers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
Rated supply voltage
24-240 V AC
Mounting
Industrial DIN-rail
AC/DC current function
ON/OFF monitoring; Overcurrent; Undercurrent; Over or undercurrent
1/3-phase current category
Above 5 A
Output
1 relay
Time delay
Delay on alarm
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| With detachable clamps (EF003340) | No |
| Single-phase under current possible (EF003405) | No |
| Three-phase under current possible (EF003406) | Yes |
| Single-phase overcurrent possible (EF003407) | Yes |
| Single-phase hysteresis possible (EF003394) | Yes |
| Current measuring range (EF000417) | 2 A |
| Min. adjustable delay-on energization time (EF008190) | 0.1 s |
| Max. permitted delay-on energization time (EF008189) | 30 s |
| External current transformer (EF001923) | No |
| Width (EF000008) | 22.5 mm |
| Height (EF000040) | 80 mm |
| Depth (EF000049) | 99.5 mm |
