SPD12101B CARLO GAVAZZI Selected parameters MODEL Din Rail AC INPUT VOLTAGE 90 265V OUTPUT POWER 10W PARALLE..
SPD12101B
12101
CARLO GAVAZZI
1 Pcs.
Automation > DC-power supply
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

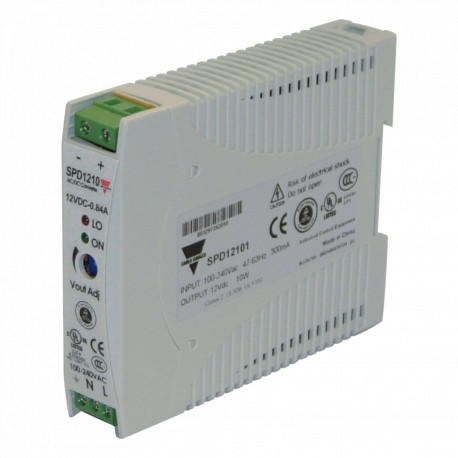

Supplied by Carlo Gavazzi under product code SPD12101B, this SPD12101B CARLO GAVAZZI Selected parameters MODEL Din Rail AC INPUT VOLTAGE 90 265V OUTPUT POWER 10W PARALLE.. handles the conversion of alternating current supplies into low-voltage DC power for microcontrollers, sensors, and signaling devices. DIN rail power supply units are standard choices for space-saving installations within industrial control panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type (supply voltage) (EF002991): AC/DC
- 1st secondary output voltage (EF006792): 11.76 V
- 2nd secondary output voltage (EF006797): 0 V
- 3rd secondary output voltage (EF006800): 0 V
- Max. output current 1 (EF008284): 0.84 A
- Max. output current 2 (EF008285): 0 A
- Max. output current 3 (EF008286): 0 A
- Secondary voltage adjustable (EF007002): Yes
- Nominal value output voltage 1 (EF009393): 12 V
- Nominal value output voltage 2 (EF009394): 0 V
- Nominal value output voltage 3 (EF009395): 0 V
- Nominal value output current 1 (EF009396): 0.84 A
- Nominal value output current 2 (EF009397): 0 A
- Nominal value output current 3 (EF009398): 0 A
- Short-circuit-proof (EF007332): Yes
- Rated supply voltage AC 50 Hz (EF007076): 100 V
