> CARLO GAVAZZI > 15101

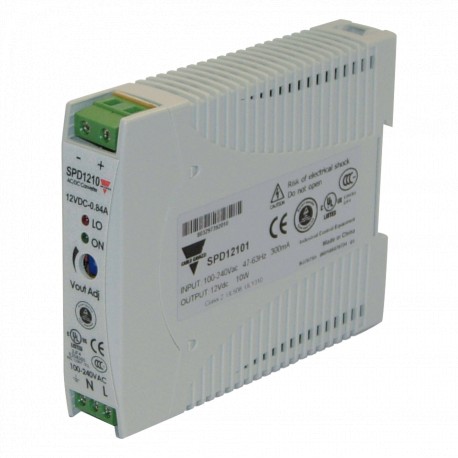

CARLO GAVAZZI SPD15101 SPD15101 CARLO GAVAZZI Selected parameters MODEL Din Rail AC INPUT VOLTAGE 90 265V OUTPUT POWER 10W PARALLEL.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SPD15101 CARLO GAVAZZI Selected parameters MODEL Din Rail AC INPUT VOLTAGE 90 265V OUTPUT POWER 10W PARALLEL..

SPD15101

15101

CARLO GAVAZZI

1 Pcs.

Selected parameters MODEL Din Rail AC INPUT VOLTAGE 90 - 265V OUTPUT POWER 10W PARALLEL CONNECTION no INPUT TYPE Single phase or DC OUTPUT VOLTAGE 15Vdc PFC no DC INPUT VOLTAGE 120 - 370V TERMINAL TYPE Screw terminal OUTPUT RDY no Others DESCRIPTION 10W, Screw terminals Single-phase power supply, output 15 Vdc, output current 0.67 A, output power 10 W Switching Power Supply, AC/DC, 10W, 15V, Screw Terminals, IP20, DIN-Rail Mounting, Over-load, Over-voltage and Short-circuit Protections, 22.5x90x114mm housing

Automation > DC-power supply

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Carlo Gavazzi SPD15101 DIN rail power supply transforms AC line voltage into reliable DC output to energize low-power control electronics, instrumentation, and sensor networks. Compact power supplies ensure consistent voltage delivery in confined automation enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (supply voltage) (EF002991): AC/DC
  • 1st secondary output voltage (EF006792): 14.7 V
  • 2nd secondary output voltage (EF006797): 0 V
  • 3rd secondary output voltage (EF006800): 0 V
  • Max. output current 1 (EF008284): 0.67 A
  • Max. output current 2 (EF008285): 0 A
  • Max. output current 3 (EF008286): 0 A
  • Secondary voltage adjustable (EF007002): Yes
  • Nominal value output voltage 1 (EF009393): 15 V
  • Nominal value output voltage 2 (EF009394): 0 V
  • Nominal value output voltage 3 (EF009395): 0 V
  • Nominal value output current 1 (EF009396): 0.67 A
  • Nominal value output current 2 (EF009397): 0 A
  • Nominal value output current 3 (EF009398): 0 A
  • Short-circuit-proof (EF007332): Yes
  • Rated supply voltage AC 50 Hz (EF007076): 100 V

More info

▲

Specifications

Rated output voltage DC
15 V
Power output
10 W
Max. output current DC
0.67 A
Terminal type
Screw connection
Rail mounting possible
Yes
Wall mounting possible
No
Degree of protection (IP)
IP20
Width
22.5 mm
Height
90 mm
Depth
114 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
