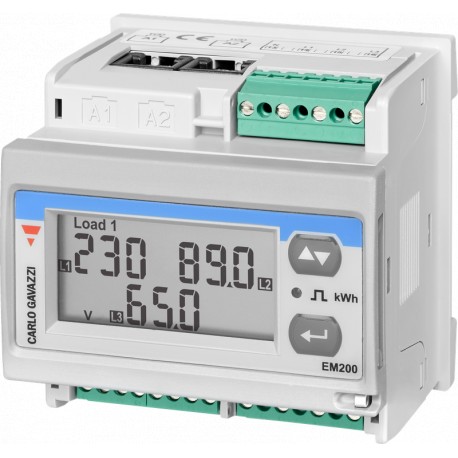

CARLO GAVAZZI EM27072DMV63X2SX EM27072DMV63X2SX CARLO GAVAZZI Selected parameters FUNCTION Energy analyzer MOUNTING DIN-rail and Panel POWE.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EM27072DMV63X2SX CARLO GAVAZZI Selected parameters FUNCTION Energy analyzer MOUNTING DIN-rail and Panel POWE..

EM27072DMV63X2SX

27072

CARLO GAVAZZI

1 Pcs.

Selected parameters FUNCTION Energy analyzer MOUNTING DIN-rail and Panel POWER SUPPLY Self power supply OUTPUT DIGITAL INPUT None INPUT TYPE 3-phase AC CONNECTION CT/VT COMMUNICATION Dual RS485 serial communication port Others RANGE 120VLN/230VLL CA DISPLAY 6+1 DGT VARIABLES kWh, kvarh, V, A, W DIGITAL INPUTS None PULSE None ALARMS None ANALOGUE none Compact three-phase energy analyzer, Measurement 2 three-phase or 6 single-phase loads Three-phase Energy analyzer, 160 to 240 V L-N, 277 to 415 V L-L, (630) A, RS485 Modbus RTU

Automation > Kilowatt-hour meter
Digital Panel Meters and temperature

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An EM27072DMV63X2SX CARLO GAVAZZI Selected parameters FUNCTION Energy analyzer MOUNTING DIN-rail and Panel POWE serves as a multi-functional electronic energy analyzer designed for installation in electrical switchboards to monitor consumption and grid parameters. Such instrumentation supports automated energy management systems by providing real-time data on active and reactive power variables.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of meter (EF005441): Electronic
  • Nominal voltage (Un) N-L (EF008871): 57.7 V
  • Nominal voltage (Un) L-L (EF008872): 100 V
  • Frequency (EF000416): 50 Hz
  • Pole type (EF008843): Three conductor/four conductor
  • Model (EF000010): Measurement transformer
  • Energy type (EF007135): Effective power and reactive power
  • Suitable for (EF000073): Purchase/supply
  • Calibrated (EF008836): Yes
  • Pulse output (EF008838): Optic
  • Pulse rate (EF008840): 100 Imp/kWh (kvarh)
  • Type of indication (EF000306): Digital
  • Mounting method (EF000003): DRA (DIN-rail adapter)
  • Width in number of modular spacings (EF002950): 4
  • Type of interface (EF006977): RS-485
  • With lock code (EF008846): Yes

More info

▲

Specifications

Voltage inputs
1-phase (2-wire), 115 V L-N; 1-phase (2-wire), 120 V L-N; 3-phase (4-wire), 120/208 V; 3-phase (4-wire), 127/220 V
Frequency
50Hz; 60Hz
Current inputs
direct connection up to 600 A
Multi-load sensor type
solid core
Monitored loads per meter
1-phase loads: up to 6; 3-phase loads: up to 2
Energy metering
Consumption; Consumption and generation
Communication port and protocol
RS485 (Modbus RTU)
Power supply
Self power supply
Approvals, marks, declarations
CE (Europe); cULus (North America); UKCA (UK)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
