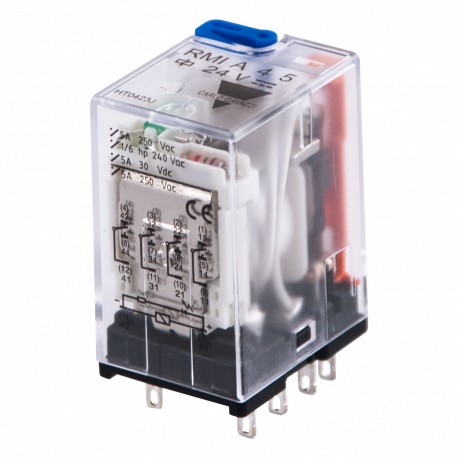

CARLO GAVAZZI RMIA45110VDC RMIA45110VDC CARLO GAVAZZI Relay industrial plug miniature 4-pin, Amperage 5 A, coil Voltage 110 VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RMIA45110VDC CARLO GAVAZZI Relay industrial plug miniature 4-pin, Amperage 5 A, coil Voltage 110 VDC

RMIA45110VDC

45110

CARLO GAVAZZI

20 Pcs.

Relay industrial plug miniature 4-pin, Amperage 5 A, coil Voltage 110 VDC Miniature 4-contact plug-in industrial relay, Amperage 5 A, Coil voltage 110 VDC Industrial Electromechanical Relays series, 5A 250VAC/30VDC, 14 poles, 4PDT (4 Change Over contacts), Coil voltage 110VDC

Automation > Switching relay
Industrials Relays and sockets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A miniature industrial plug relay serves as an electromechanical switching device utilized in control panels to isolate control circuits from load circuits and handle multiple poles simultaneously. The Carlo Gavazzi RMIA45110VDC model provides polarity-free mono stable operation with four change-over contacts and a visual LED indicator. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electric connection (EF003961): Plug-in connection
  • With detachable clamps (EF003340): No
  • Nominal current (EF000001): 5 A
  • Rated control supply voltage AC 50 Hz (EF003978): 0 V
  • Rated control supply voltage AC 60 Hz (EF003979): 0 V
  • Rated control supply voltage DC (EF003980): 110 V
  • Voltage type for actuating (EF008242): DC
  • Drive, polarization (EF003355): Polarity free
  • Drive, switching attitude (EF003356): Mono stable
  • Number of contacts as normally closed contact (EF008255): 4
  • Number of contacts as normally open contact (EF008256): 4
  • Number of contacts as change-over contact (EF008257): 4
  • With forced-guided contacts (EF003357): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): Yes
  • Material of contact surface (EF004020): Silver

More info

▲

Specifications

Rated control supply voltage Us at AC 50HZ
0 V ... 0 V
Rated control supply voltage Us at DC
110 V ... 110 V
Nominal current
5 A
Number of contacts as normally closed contact
4
Number of contacts as normally open contact
4
Number of contacts as change-over contact
4
Type of electric connection
Plug-in connection; Plug-in connection
With LED indication
Yes
Material contact
Beryllium copper

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
