View larger
Images are for illustrative purposes only. Please refer to data sheet for details

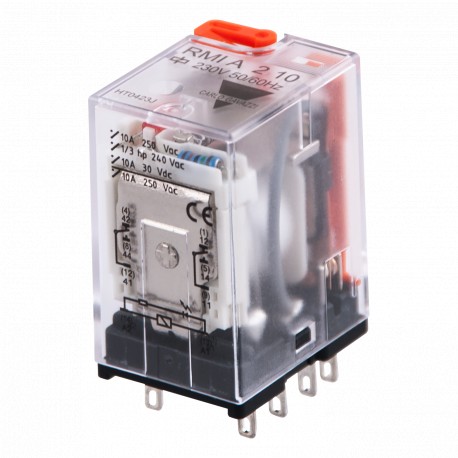

RMIA21048VDC CARLO GAVAZZI Relay industrial plug-in miniature 2 contacts, coil Voltage 48 VDC, Amps 10 To
RMIA21048VDC
21048
CARLO GAVAZZI
20 Pcs.
Relay industrial plug-in miniature 2 contacts, coil Voltage 48 VDC, Amps 10 To
Miniature 2-pin plug-in industrial relay, Coil voltage 48 VDC, Amperage 10 A
Industrial Electromechanical Relays series, 10A 250VAC/30VDC, 8 poles, DPDT (2 Change Over contacts), Coil voltage 48VDC
Automation > Switching relay
Industrials Relays and sockets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
Rated control supply voltage Us at AC 50HZ
0 V ... 0 V
Rated control supply voltage Us at DC
48 V ... 48 V
Nominal current
10 A
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
2
Number of contacts as change-over contact
2
Type of electric connection
Plug-in connection; Plug-in connection
With LED indication
Yes
Material contact
Beryllium copper
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Plug-in connection |
| With detachable clamps (EF003340) | No |
| Nominal current (EF000001) | 10 A |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 48 V |
| Voltage type for actuating (EF008242) | DC |
| Drive, polarization (EF003355) | Polarity free |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as change-over contact (EF008257) | 2 |
| With forced-guided contacts (EF003357) | No |
| Type of switch contact (EF003358) | Double contact |
| Complete with socket (EF003359) | No |
| With LED indication (EF005950) | Yes |
| Material of contact surface (EF004020) | Silver |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Beryllium copper |
| Degree of protection (IP) (EF005474) | IP40 |
| Width (EF000008) | 28 mm |
| Height (EF000040) | 21.5 mm |
| Depth (EF000049) | 36 mm |
