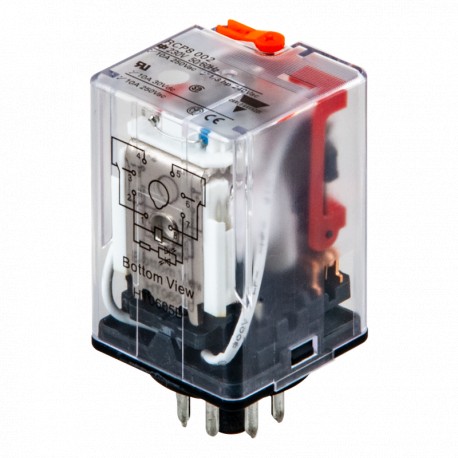

CARLO GAVAZZI RCP800224VDC RCP800224VDC CARLO GAVAZZI Relay industrial plug-in RCP to base octal 2 contacts, Amperage 10 A, Voltage coi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RCP800224VDC CARLO GAVAZZI Relay industrial plug-in RCP to base octal 2 contacts, Amperage 10 A, Voltage coi..

RCP800224VDC

800224

CARLO GAVAZZI

1 Pcs.

Relay industrial plug-in RCP to base octal 2 contacts, Amperage 10 A, Voltage coil 24 VDC Plug-in industrial relay RCP for octal base with 2 contacts, Amperage 10 A, Coil voltage 24 VDC Industrial Electromechanical Relays series, 10A 250VAC/30VDC, 8 poles Octal, DPDT (2 Change Over contacts), Coil voltage 24VDC

Automation > Switching relay
Industrials Relays and sockets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a switching interface for electrical loads, the Carlo Gavazzi RCP800224VDC relay industrial plug-in RCP to base octal 2 contacts provides reliable circuit control within automated systems. Industrial plug-in relays are commonly utilized in control panels to multiply contacts, isolate control circuits, and switch moderate loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electric connection (EF003961): Plug-in connection
  • With detachable clamps (EF003340): No
  • Nominal current (EF000001): 10 A
  • Rated control supply voltage AC 50 Hz (EF003978): 0 V
  • Rated control supply voltage AC 60 Hz (EF003979): 0 V
  • Rated control supply voltage DC (EF003980): 24 V
  • Voltage type for actuating (EF008242): DC
  • Drive, polarization (EF003355): Polarity free
  • Drive, switching attitude (EF003356): Mono stable
  • Number of contacts as change-over contact (EF008257): 2
  • With forced-guided contacts (EF003357): No
  • Type of switch contact (EF003358): Double contact
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): Yes
  • Material of contact surface (EF004020): Silver
  • Material of contact insert (EF008521): Thermoplastic

More info

▲

Specifications

Rated control supply voltage Us at AC 50HZ
0 V ... 0 V
Rated control supply voltage Us at DC
24 V ... 24 V
Nominal current
10 A
Number of contacts as change-over contact
2
Type of electric connection
Plug-in connection; Plug-in connection
With LED indication
Yes
Material contact
Other copper alloys

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
