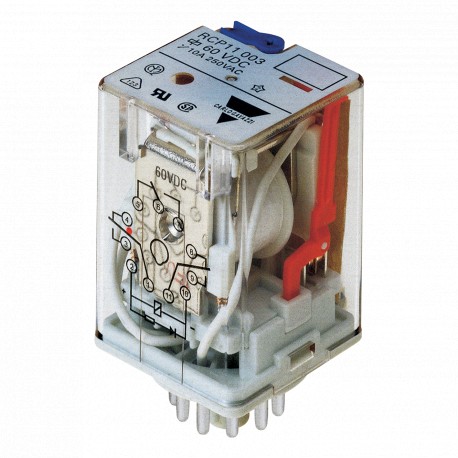

CARLO GAVAZZI RCP1100324VAC RCP1100324VAC CARLO GAVAZZI Relay industrial plug-in RCP to base undecal 3 contacts, Amperage 10 A, Voltage .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RCP1100324VAC CARLO GAVAZZI Relay industrial plug-in RCP to base undecal 3 contacts, Amperage 10 A, Voltage ..

RCP1100324VAC

1100324

CARLO GAVAZZI

1 Pcs.

Relay industrial plug-in RCP to base undecal 3 contacts, Amperage 10 A, Voltage coil 24 VAC Industrial plug-in relay RCP for undecal base 3 contacts, Amperage 10 A, Coil voltage 24 VAC Industrial Electromechanical Relays series, 10A 250VAC/30VDC, 11 poles Undecal, 3PDT (3 Change Over contacts), Coil voltage 24VAC

Automation > Switching relay
Industrials Relays and sockets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Operating as a Carlo Gavazzi Relay industrial plug-in RCP to base undecal 3 contacts, Amperage 10 A, Voltage .., this plug-in relay module provides rapid installation and replacement within heavy control panels. General industrial installations use these devices to multiply switching contacts and safely interface low-level signals with heavier load circuits.

Pricing, availability, and delivery lead times are confirmed per enquiry through our RFQ process.

  • Type of electric connection (EF003961): Plug-in connection
  • With detachable clamps (EF003340): No
  • Nominal current (EF000001): 10 A
  • Rated control supply voltage AC 50 Hz (EF003978): 24 V
  • Rated control supply voltage AC 60 Hz (EF003979): 24 V
  • Rated control supply voltage DC (EF003980): 0 V
  • Voltage type for actuating (EF008242): AC
  • Drive, polarization (EF003355): Polarity free
  • Drive, switching attitude (EF003356): Mono stable
  • Number of contacts as change-over contact (EF008257): 3
  • With forced-guided contacts (EF003357): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): Yes
  • Material of contact surface (EF004020): Untreated
  • Material of contact insert (EF008521): Thermoplastic
  • Material contact (EF007544): Other not-copper alloys

More info

▲

Specifications

Rated control supply voltage Us at AC 50HZ
24 V ... 24 V
Rated control supply voltage Us at DC
0 V ... 0 V
Nominal current
10 A
Number of contacts as change-over contact
3
Type of electric connection
Plug-in connection; Plug-in connection
With LED indication
Yes
Material contact
Other not-copper alloys

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
