View larger
Images are for illustrative purposes only. Please refer to data sheet for details

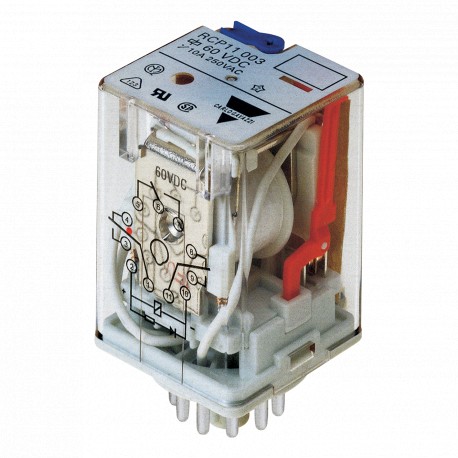

RCP1100312VAC CARLO GAVAZZI Relay industrial plug-in RCP to base undecal 3 contacts, Amperage 10 A, Voltage ..
RCP1100312VAC
1100312
CARLO GAVAZZI
1 Pcs.
Relay industrial plug-in RCP to base undecal 3 contacts, Amperage 10 A, Voltage coil 12 VAC
Industrial plug-in relay RCP for undecal base 3 contacts, Amperage 10 A, Coil voltage 12 VAC
Industrial Electromechanical Relays series, 10A 250VAC/30VDC, 11 poles Undecal, 3PDT (3 Change Over contacts), Coil voltage 12VAC
Automation > Switching relay
Industrials Relays and sockets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
Rated control supply voltage Us at AC 50HZ
12 V ... 12 V
Rated control supply voltage Us at DC
0 V ... 0 V
Nominal current
10 A
Number of contacts as change-over contact
3
Type of electric connection
Plug-in connection; Plug-in connection
With LED indication
Yes
Material contact
Other not-copper alloys
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Plug-in connection |
| With detachable clamps (EF003340) | No |
| Nominal current (EF000001) | 10 A |
| Rated control supply voltage AC 50 Hz (EF003978) | 12 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 12 V |
| Rated control supply voltage DC (EF003980) | 0 V |
| Voltage type for actuating (EF008242) | AC |
| Drive, polarization (EF003355) | Polarity free |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as change-over contact (EF008257) | 3 |
| With forced-guided contacts (EF003357) | No |
| Type of switch contact (EF003358) | Other |
| Complete with socket (EF003359) | No |
| With LED indication (EF005950) | Yes |
| Material of contact surface (EF004020) | Untreated |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Other not-copper alloys |
| Degree of protection (IP) (EF005474) | IP40 |
| Width (EF000008) | 35 mm |
| Height (EF000040) | 66 mm |
| Depth (EF000049) | 35.5 mm |
