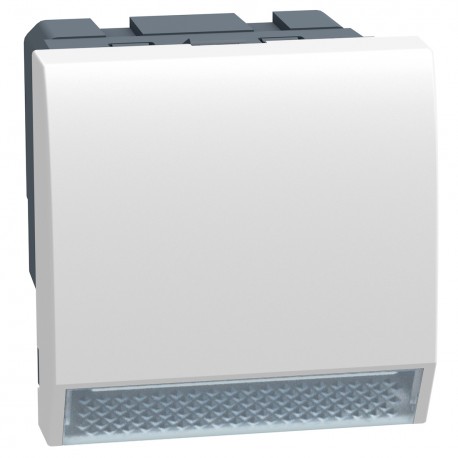

BTICINO YW4382 YW4382 BTCINO LW-LAMP RAS LIGHT 230V 2M WH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YW4382 BTCINO LW-LAMP RAS LIGHT 230V 2M WH

YW4382

YW4382

BTICINO

10 Pcs.

LW-LAMP RAS LIGHT 230V 2M WH Light Now Beaconed Pilot - 2 modules - White

Automation > Information light signal for domestic switching devices
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An information light signal module acts as an integrated signaling component within building automation wiring systems, offering reliable visual status indication. This Bticino YW4382 lw-lamp ras light 230v 2m wh unit installs flush to deliver consistent white illumination in commercial facilities.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Max. lamp power (EF000260): 0.5 W
  • Material (EF002169): Plastic
  • Surface finishing (EF006569): Matt
  • Lamp type (EF002423): LED non-replaceable
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • Type of fastening (EF002442): Engage (snap)
  • Mounting method (EF000003): Flush mounted
  • Nominal voltage (EF000002): 230 V
  • Number of modules (module system) (EF009573): 2
  • Transparent (EF006243): Yes
  • Min. depth of built-in installation box (EF012278): 40.5 mm
  • Colour light source (EF001402): White
  • Surface protection (EF000139): Lacquered
  • With light source (EF005905): Yes
  • With fixed symbol/imprint (EF007949): No

More info

▲
Light signalers - Beacon pilot - 230 Vac - Allows to create directional and decorative lighting - Its installation is recommended 30 cm from the ground - With On/Off switch to regulate operation - White LED lamp, consumption 1 W - Luminous flux 70 lumens - To combine with support and decorative plate - 2 modules.
Type of mountingComplete device, Recessed mounted (plaster)
Number of modules (in case of modular design)2
Lamp holdernone
With light sourceYes
LampNon-interchangeable LED
With flashing lightNo
With fixed symbol/printingNo
With interchangeable symbolNo
Can be used as a pushbuttonNo
Attachment TypeLock in position
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
ColourWhite
RAL number (similar)9003
TransparentYes
Lamp colorWhite
Suitable for protection grade (IP)IP20
Nominal Voltage230 V
Lamp power max.0.5 W
Device width45 mm
Device height45 mm
Device Depth38.5 mm
Min. depth of the recessed box40.5 mm
Installation Depth30.5 mm
Impact resistanceIK04
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
frequency50-60 Hz
Neutral MandatoryNo
Display of markings on the connection terminalsNo
Compliant with commissioning tests (1000 V)No
Antibacterial treatmentNo
Connection MethodScrew-on terminal
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Label Space/Print AreaNo
