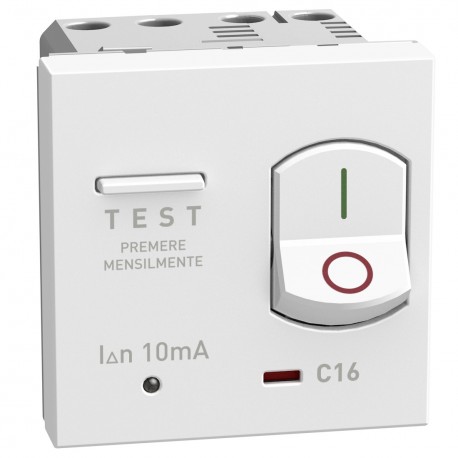

YW4305A16 BTCINO LW-M+DIF 1P+N 16A 10MA 2M WH
YW4305A16
YW4305A16
BTICINO
1 Pcs.
Automation > Earth leakage circuit breaker
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
YW4305A16 BTCINO LW-M+DIF 1P+N 16A 10MA 2M WH by Bticino is a modular residual current circuit breaker with overcurrent protection designed to safeguard electrical circuits against both overload conditions and earth leakage faults. Devices of this type are widely deployed in commercial and residential distribution boards to protect personnel from electric shock and installations from insulation damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Frequency (EF005455): 50/60 Hz
- Connectable conductor cross section solid-core (EF007337): 2.5 mm²
- Ambient temperature during operating (EF007515): -5 °C
- Degree of protection (IP) (EF005474): IP20
- Leakage current type (EF002560): AC
- Voltage type (EF000187): AC
- Concurrently switching neutral conductor (EF005997): Yes
- Surge current capacity (EF002564): 3000 kA
- Anti-nuisance tripping version (EF009497): No
- Rated fault current (EF002358): 10 A
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 1
- Built-in depth (EF000218): 40 mm
- Number of poles (total) (EF008618): 1
- Width in number of modular spacings (EF002950): 45
- Rated insulation voltage Ui (EF001366): 253 V
More info
▲| Number of poles (total) | 1 |
|---|---|
| Number of protected poles | 1 |
| Nominal voltage | 230 V |
| Nominal insulation voltage Ui | 253 V |
| Assigned Voltage Peak Resistance (Uimp) | 4 kV |
| Nominal current | 16 A |
| Fault Current Rating | 10 A |
| Fault Current Type | AC |
| Power Limitation Class | 1 |
| Assigned cutting capacity according to EN 61009 | 1500 kA |
| Rated breaking power according to IEC 60947-2 | 1500 kA |
| Assigned Cutting Power Icn according to EN 61009-1 | 1500 kA |
| Disconnect feature | No delay |
| Current resistance | 3000 kA |
| Type of voltage | AC |
| frequency | 50/60 Hz |
| Shot curve | C |
| Neutral Conductor Coupling | Yes |
| With locking device | No |
| Ambient temperature during operation | -5-35 °C |
| Width in number of modular spaces | 45 |
| Installation Depth | 40 mm |
|---|---|
| Protection against untimely shooting | No |
| Protection Class (IP) | IP20 |
| Solid Connectable Conductor Section | 2.5-3 mm² |
| Connectable conductor section | 1.5-2.5 mm² |
| Width | 45 mm |
| Height | 45 mm |
| Depth | 50 mm |
| Impact resistance | IK04 |
| Storage temperature | -5-35 °C |
| Nominal Voltage | 110-230 V |
| Direction of the electricity supply | On the back of the product |
| Display of markings on the connection terminals | No |
| Compliant with commissioning tests (1000 V) | No |
| Colour | White |
| RAL number | 9003 |
| Halogen-free | Yes |
| Connection Method | Screw-on terminal |
| Connection type | Other |
| Label Space/Print Area | No |
