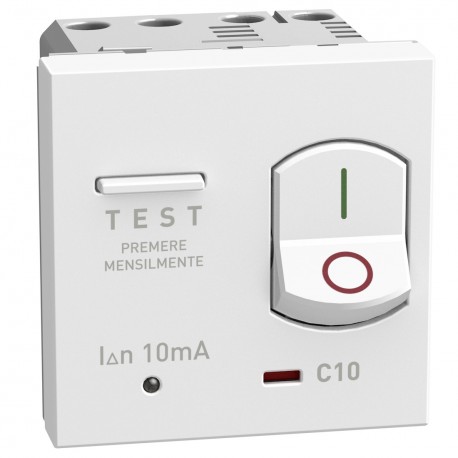

BTICINO YW4305A10 YW4305A10 BTCINO LW-M+DIF 1P+N 10A 10MA 2M WH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YW4305A10 BTCINO LW-M+DIF 1P+N 10A 10MA 2M WH

YW4305A10

YW4305A10

BTICINO

1 Pcs.

LW-M+DIF 1P+N 10A 10MA 2M WH Automatic circuit breaker + differential Light Now - 10A - 2 modules - White

Automation > Earth leakage circuit breaker
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino model YW4305A10 is a modular electrical protection unit that combines residual current monitoring and miniature circuit breaker functions within a compact footprint. It is deployed in distribution enclosures to shield circuits from overloads and ground faults.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Frequency (EF005455): 50/60 Hz
  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Ambient temperature during operating (EF007515): -5 °C
  • Degree of protection (IP) (EF005474): IP20
  • Leakage current type (EF002560): AC
  • Voltage type (EF000187): AC
  • Concurrently switching neutral conductor (EF005997): Yes
  • Surge current capacity (EF002564): 3000 kA
  • Anti-nuisance tripping version (EF009497): No
  • Rated fault current (EF002358): 10 A
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 1
  • Built-in depth (EF000218): 40 mm
  • Number of poles (total) (EF008618): 1
  • Width in number of modular spacings (EF002950): 45
  • Rated insulation voltage Ui (EF001366): 253 V

More info

▲
Automatic circuit breakers and differential - It has a protected pole - Open and closed contact indicator - Test button - 10A - Breaking power: 3,000A - 2 modules - White.
Number of poles (total)1
Number of protected poles1
Nominal voltage230 V
Nominal insulation voltage Ui253 V
Assigned Voltage Peak Resistance (Uimp)4 kV
Nominal current10 A
Fault Current Rating10 A
Fault Current TypeAC
Power Limitation Class1
Assigned cutting capacity according to EN 610091500 kA
Rated breaking power according to IEC 60947-21500 kA
Assigned Cutting Power Icn according to EN 61009-11500 kA
Disconnect featureNo delay
Current resistance3000 kA
Type of voltageAC
frequency50/60 Hz
Shot curveC
Neutral Conductor CouplingYes
With locking deviceNo
Ambient temperature during operation-5-35 °C
Width in number of modular spaces45
Installation Depth40 mm
Protection against untimely shootingNo
Protection Class (IP)IP20
Solid Connectable Conductor Section2.5-3 mm²
Connectable conductor section1.5-2.5 mm²
Width45 mm
Height45 mm
Depth50 mm
Impact resistanceIK04
Storage temperature-5-35 °C
Nominal Voltage110-230 V
Direction of the electricity supplyOn the back of the product
Display of markings on the connection terminalsNo
Compliant with commissioning tests (1000 V)No
ColourWhite
RAL number9003
Halogen-freeYes
Connection MethodScrew-on terminal
Connection typeOther
Label Space/Print AreaNo
