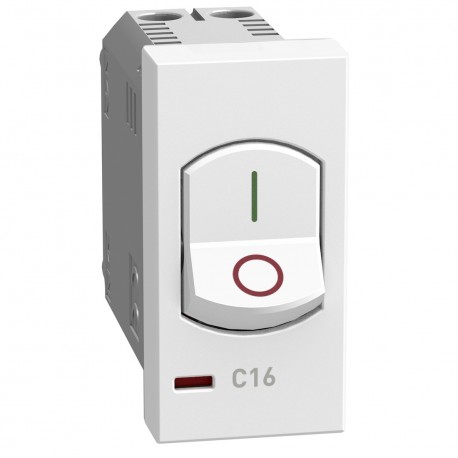

BTICINO YW4301A16 YW4301A16 BTCINO LW-MAG 1P+N 16A 1M WH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YW4301A16 BTCINO LW-MAG 1P+N 16A 1M WH

YW4301A16

YW4301A16

BTICINO

1 Pcs.

LW-MAG 1P+N 16A 1M WH Light Now automatic circuit breaker - 16A - 1 module - White

Automation > Miniature circuit breaker (MCB)
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

YW4301A16 is a Bticino miniature circuit breaker engineered to protect building electrical installations against short circuits and overloads. Circuit protection devices are widely utilized in distribution boards to maintain safety and prevent equipment damage.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Ambient temperature during operating (EF007515): -5 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): No
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 1
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 40 mm
  • Number of poles (total) (EF008618): 1
  • Width in number of modular spacings (EF002950): 22.5
  • Rated insulation voltage Ui (EF001366): 253 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²
  • Rated current (EF000227): 16 A

More info

▲
Automatic circuit breakers - It has a protected pole - Open and closed contact indicator - 16A - Breaking power: 3,000A - 1 module - White.
Installation Depth40 mm
Shot curveC
Number of poles (total)1
Number of protected poles1
Nominal current16 A
Nominal voltage230 V
Nominal insulation voltage Ui253 V
Assigned Voltage Peak Resistance (Uimp)4 kV
Type of voltageAC
frequency50-60 Hz
Power Limitation Class1
Flush mountingYes
Neutral Conductor CouplingYes
Additional equipment possibleNo
Width in number of modular spaces22.5
Protection Class (IP)IP20
Ambient temperature during operation-5-35 °C
Connectable conductor section1.5-2.5 mm²
Solid Connectable Conductor Section2.5-3 mm²
Explosion protectionNo
Width22.5 mm
Height45 mm
Depth50 mm
Impact resistanceIK04
Storage temperature-10-70 °C
Nominal Voltage110-230 V
Direction of the electricity supplyOn the back of the product
Display of markings on the connection terminalsNo
ColourWhite
RAL number9003
Halogen-freeYes
Connection MethodScrew-on terminal
Connection typeOther
Label Space/Print AreaNo
Type of mountingRecessed mounted (plaster)
