View larger
Images are for illustrative purposes only. Please refer to data sheet for details

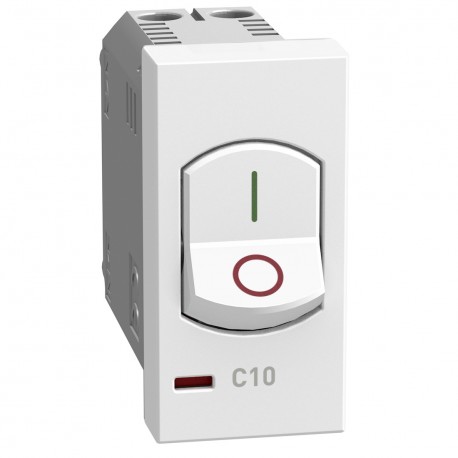

YW4301A10 BTCINO LW-MAG 1P+N 10A 1M WH
YW4301A10
YW4301A10
BTICINO
1 Pcs.
LW-MAG 1P+N 10A 1M WH
Light Now Automatic Circuit Breaker - 10A - 1 module - White
Automation > Miniature circuit breaker (MCB)
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Automatic circuit breakers - It has a protected pole - Open and closed contact indicator - 10A - Breaking power: 3,000A - 1 module - White.
| Installation Depth | 40 mm |
|---|---|
| Shot curve | C |
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Nominal current | 10 A |
| Nominal voltage | 230 V |
| Nominal insulation voltage Ui | 253 V |
| Assigned Voltage Peak Resistance (Uimp) | 4 kV |
| Type of voltage | AC |
| frequency | 50-60 Hz |
| Power Limitation Class | 1 |
| Flush mounting | Yes |
| Neutral Conductor Coupling | Yes |
| Additional equipment possible | No |
| Width in number of modular spaces | 22.5 |
| Protection Class (IP) | IP20 |
| Ambient temperature during operation | -5-35 °C |
| Connectable conductor section | 1.5-2.5 mm² |
| Solid Connectable Conductor Section | 2.5-3 mm² |
|---|---|
| Explosion protection | No |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 50 mm |
| Impact resistance | IK04 |
| Storage temperature | -10-70 °C |
| Nominal Voltage | 110-230 V |
| Direction of the electricity supply | On the back of the product |
| Display of markings on the connection terminals | No |
| Colour | White |
| RAL number | 9003 |
| Halogen-free | Yes |
| Connection Method | Screw-on terminal |
| Connection type | Other |
| Label Space/Print Area | No |
| Type of mounting | Recessed mounted (plaster) |
| Feature Name | Feature Value |
|---|---|
| Explosion-proof (EF004663) | No |
| Connectable conductor cross section solid-core (EF007337) | 2.5 mm² |
| Ambient temperature during operating (EF007515) | -5 °C |
| Degree of protection (IP) (EF005474) | IP20 |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Voltage type (EF000187) | AC |
| Additional equipment possible (EF008148) | No |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Number of protected poles (EF005548) | 1 |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 40 mm |
| Number of poles (total) (EF008618) | 1 |
| Width in number of modular spacings (EF002950) | 22.5 |
| Rated insulation voltage Ui (EF001366) | 253 V |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Rated current (EF000227) | 10 A |
| Current limiting class (EF002568) | 1 |
| Flush-mounted installation (EF007517) | Yes |
| Release characteristic (EF000889) | C |
| Rated voltage (EF000228) | 230 V |
