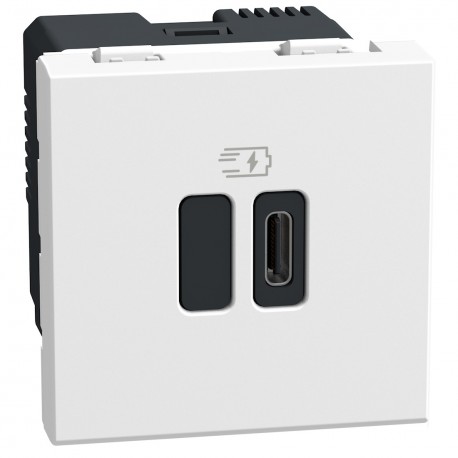

YW4294C BTCINO LW-BASE USB C 45W PD 2M WH
YW4294C
YW4294C
BTICINO
1 Pcs.
Automation > USB power supply
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A YW4294C BTCINO LW-BASE USB C 45W PD 2M WH functions as an integrated charging outlet built into wall installations to power portable electronic devices directly from the building mains. Units of this type are routinely deployed in commercial offices, public areas, and residential spaces to streamline device charging without bulky external adapters.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Mounting method: Flush mounted
- Suitable for degree of protection (IP): IP40
- Connection type: Screwed terminal
- Operating voltage: 220 V
- Device depth: 41 mm
- Impact strength: IK04
- Anti-bacterial treatment: No
- Number of ports USB-C: 1
- Min. depth of built-in installation box: 43 mm
- Output voltage: 5 V
- Power consumption: 0.074 W
- Device width: 45 mm
- Device height: 45 mm
- Colour: White
- Number of ports USB-A: 0
- RAL-number: 9003
More info
▲| Model | Other |
|---|---|
| Number of USB-A ports | 0 |
| Number of USB-C ports | 1 |
| Operating voltage | 220-240 V |
| frequency | 50-60 Hz |
| Maximum output current | 3000 mA |
| Output voltage | 5-20 V |
| Power consumption | 0.074 W |
| Connection Method | Screw-on terminal |
| Type of mounting | Recessed mounted (plaster) |
| Colour | White |
| RAL number | 9003 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device Depth | 41 mm |
| Min. depth of the recessed box | 43 mm |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Antibacterial treatment | No |
|---|---|
| Wireless | No |
| Installation Depth | 33 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Power Delivery | Yes |
| USB Power Output | 45 |
| Nominal current | 0.8-0.8 A |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Halogen-free | Yes |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
