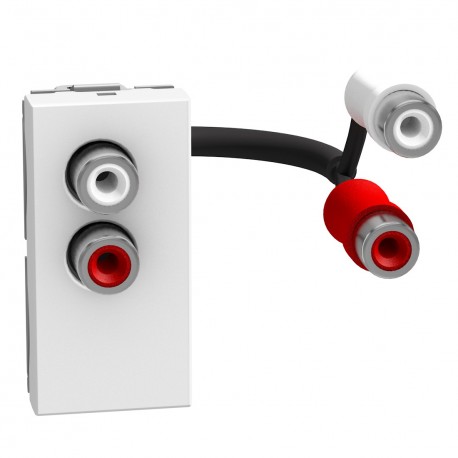

BTICINO YW4269R YW4269R BTCINO LW-BASE AUDIO RCAX2 1M WH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YW4269R BTCINO LW-BASE AUDIO RCAX2 1M WH

YW4269R

YW4269R

BTICINO

1 Pcs.

LW-BASE AUDIO RCAX2 1M WH RCA Light Now double audio base - 1 module - White

Automation > Insert/cover for communication technology
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The YW4269R BTCINO LW-BASE AUDIO RCAX2 1M WH functions as an audio connection insert housing dual RCA jacks for localized multimedia signal routing in structured electrical layouts. These inserts enable seamless integration of stereo sound inputs into standard wall boxes and multi-gang frames. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With dust cover (EF003893): No
  • Material (EF002169): Plastic
  • Shielded buses (EF002444): No
  • Surface finishing (EF006569): Matt
  • Shielded housing (EF002445): No
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • Mounting method (EF000003): Flush mounted
  • With imprint (EF004048): No
  • Number of modules (module system) (EF009573): 1
  • Transparent (EF006243): Yes
  • With lighting (EF003829): No
  • Min. depth of built-in installation box (EF012278): 36 mm
  • Luster terminal (EF003868): No
  • Surface protection (EF000139): Lacquered

More info

▲
Audio bases - RCAx2 terminals - with 150mm cable - For any peripheral device such as a DVD player, camera, VCR, etc. - 1 module - To be combined with stand and decorative plate - White.
Type of mountingBasic element with full cover plate, Recessed mounted (plaster)
UseGirth
Carrier RingNo
With dust protectionNo
With flip-top lidNo
Exit AddressStraight
Contact StyleFemale
Labeling fieldNo indication field
With printingNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentVarnishing
Surface FinishMate
ColourWhite
RAL number (similar)9003
TransparentYes
Attachment TypeLock in position
Number of modules (in case of modular design)1
With sockets/couplingsYes
Suitable for the number of sockets/couplings2
Isolated connectionsYes
With voltage reliefNo
Shielded plugsNo
Shielded housingNo
Spider ClampNo
With lightNo
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Device width22.5 mm
Device height45 mm
Device Depth33.5 mm
Min. depth of the recessed box36 mm
Installation Depth26 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
