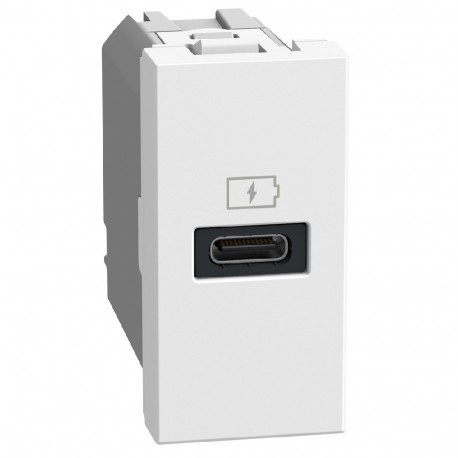

BTICINO YW4192C YW4192C BTCINO LW-BASE USB C 3A 20W PD 1M WH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YW4192C BTCINO LW-BASE USB C 3A 20W PD 1M WH

YW4192C

YW4192C

BTICINO

1 Pcs.

LW-BASE USB C 3A 20W PD 1M WH Single USB Charger Base Light Now - Type C - 1 module - White

Automation > USB power supply
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a Bticino YW4192C USB power supply module, this unit fits flush into electrical enclosures to deliver high-speed charging via built-in ports. Power modules of this type are widely integrated into structural wall plates for convenient device connectivity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 41 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 1
  • Min. depth of built-in installation box (EF012278): 43 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.048 W
  • Device width (EF008808): 22.5 mm
  • Device height (EF008809): 45 mm
  • Colour (EF000007): White
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 9003

More info

▲
Universal USB chargers - Type C - 3A - 5Vdc - 20W - Compliant with IEC62368-1 standard - Allow charging of mobile phones, tablets, smartphones, MP3, MP4 - Standby consumption 0.05 W - Class II TBTS - Complies with the EEC directive on the harmonization of the standard for charging portable terminals and the reduction of mobile chargers - To be combined with stand and decorative plate - 1 module.
ModelOther
Number of USB-A ports0
Number of USB-C ports1
Operating voltage100-240 V
frequency50-60 Hz
Maximum output current3000 mA
Output voltage5-12 V
Power consumption0.048 W
Connection MethodScrew-on terminal
Type of mountingRecessed mounted (plaster)
ColourWhite
RAL number9003
Device width22.5 mm
Device height45 mm
Device Depth41 mm
Min. depth of the recessed box43 mm
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Antibacterial treatmentNo
WirelessNo
Installation Depth33 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
Power DeliveryYes
USB Power Output20
Nominal current0.5-0.5 A
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
