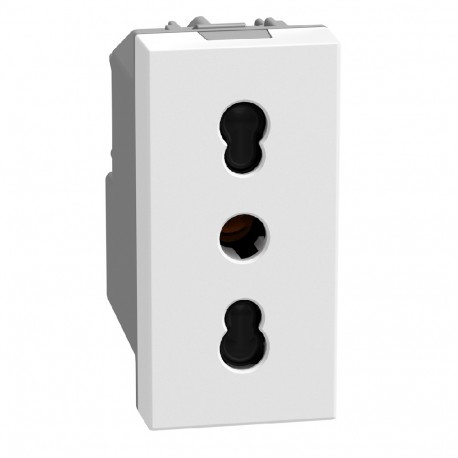

YW4180 BTCINO LW-BASE IT 2P+T 16A 1M WH
YW4180
YW4180
BTICINO
1 Pcs.
Automation > Socket outlet
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A YW4180 BTCINO LW-BASE IT 2P+T 16A 1M WH socket base manufactured by Bticino provides localized power distribution points within standard electrical enclosures and wall boxes. Devices of this category safely interface portable machinery and consumer electronics with building supply lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Over voltage protection (EF001332): No
- Nominal current (EF000001): 16 A
- Rotated central insert (EF001331): No
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Flush mounted
- Special power supply (EF001334): EV006426
- Connection type (EF000124): Screwed terminal
- Fault current protection (EF001333): No
- Nominal voltage (EF000002): 250 V
- Number of modules (module system) (EF009573): 1
- Compatible with Apple HomeKit (EF014925): No
- Eject-mechanism (EF001051): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Number of ports USB-C (EF017049): 0
- Min. depth of built-in installation box (EF012278): 39.5 mm
More info
▲| Model | Italian Type P17/11 |
|---|---|
| Neutral Conductor Coupling | No |
| Protective contact | Round |
| Number of active (round) contacts | 1 |
| Number of active contacts (drawings) | 0 |
| Number of active contacts (square) | 0 |
| Type of mounting | Basic element with center cover plate, Recessed mounted (plaster) |
| With signal lamp | No |
| Number of USB-A ports | 0 |
| Number of USB-C ports | 0 |
| Number of sockets | 1 |
| Phase-separated power outlets | No |
| Number of modules (in case of modular design) | 1 |
| Number of interchangeable sockets | 0 |
| Number of phases | 1 |
| Printing/Marking | none |
| Connection Method | Screw-on terminal |
| With flip-top lid | No |
| With enhanced contact protection | Yes |
| Label Space/Print Area | No |
| Colour | White |
| RAL number (similar) | 9003 |
| Metallic color | No |
| Transparent | Yes |
| Lockable | No |
| Expulsion mechanism | No |
| Isolated installation | No |
| With functional lighting | No |
| With adjustable lighting | No |
| Surge protection | No |
| Residual Current Device | No |
| With microfusion | No |
| Special power supply | none |
| Attachment Type | Hemming |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Antibacterial treatment | No |
| With loop function | Yes |
| Number of loops | 1 |
|---|---|
| With on/off switch | No |
| Switching element color | White |
| Rotated center insert | No |
| Nominal intensity | 16 A |
| Nominal Voltage | 250 V |
| Degree of protection (IP), plug connected | IP20 |
| frequency | 50-60 Hz |
| Suitable for protection grade (IP) | IP20 |
| Impact resistance | IK04 |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device Depth | 37.5 mm |
| Min. depth of the recessed box | 39.5 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Compatible IFTTT | No |
| With Wi-Fi signal repeater | No |
| With built-in bluetooth speaker | No |
| For server conditions according to VDE | No |
| Complies with UK Building Regulations, Part M | No |
| Installation Depth | 29.5 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Power Delivery | No |
| Display of markings on the connection terminals | No |
| Prewired | No |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
| Cable Holder | Cable glands |
| Connected Object | No |
| App download platform | Not applicable |
| Programming medium | Not applicable |
| With voice command | No |
| Programmable | No |
| Connection Protocol Interoperability | No |
| Possibility of connection via Internet box | No |
| Product usage function | Power Distribution |
