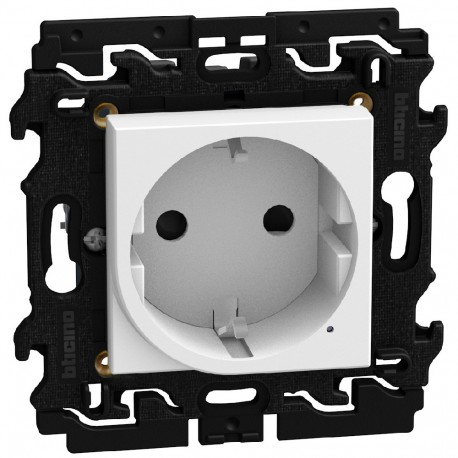

BTICINO YW4141 YW4141 BTCINO LW-BASE 2P+T 16A/230V 2M WH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YW4141 BTCINO LW-BASE 2P+T 16A/230V 2M WH

YW4141

YW4141

BTICINO

1 Pcs.

LW-BASE 2P+T 16A/230V 2M WH Standard 2P+T Power Base Light Now w/Netatmo - White 2P+T Light Now Base - 16A/250V - screw connection - White - 2 modules

Automation > Socket outlet
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

As a standard flush-mounted electrical outlet, this YW4141 BTCINO LW-BASE 2P+T 16A/230V 2M WH by Bticino distributes stable electrical current within commercial building infrastructure. Two-module receptacles of this configuration provide dependable connection points for everyday electrical loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwed terminal
  • Fault current protection (EF001333): No
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 41.5 mm

More info

▲
The connected power base allows you to measure instant and accumulated consumption - It is compatible with all types of electrical equipment, especially household appliances - It incorporates additional built-in protection in case of overloads above 16A - Allows the configuration of sending notifications (breakdown, excess consumption, etc.) - Uses the same wiring (phase and neutral) as a traditional power base - It can be controlled from one or several wireless lighting commands and from the DAY/NIGHT and ENTER/EXIT commands - Requires installation of the Starter Pack - Must be completed with a Light Now Series trim plate
ModelPower socket with protective contact CEE 7/3 (type F)
Neutral Conductor CouplingNo
Protective contactOther
Number of active (round) contacts2
Number of active contacts (drawings)0
Number of active contacts (square)0
Type of mountingBasic element with center cover plate, Recessed mounted (plaster)
With signal lampYes
Number of USB-A ports0
Number of USB-C ports0
Number of sockets1
Phase-separated power outletsNo
Number of modules (in case of modular design)2
Number of interchangeable sockets1
Number of phases1
Printing/Markingnone
Connection MethodPlug clamp
With flip-top lidNo
With enhanced contact protectionYes
Label Space/Print AreaNo
ColourWhite
RAL number (similar)9003
Metallic colorNo
TransparentNo
LockableYes
Expulsion mechanismNo
Isolated installationNo
With functional lightingYes
With adjustable lightingNo
Surge protectionNo
Residual Current DeviceNo
With microfusionNo
Special power supplynone
Attachment TypeHook and screw mounting
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
With loop functionYes
Number of loops1
With on/off switchYes
Switching element colorWhite
Rotated center insertNo
Nominal Voltage240 V
frequency50-60 Hz
Suitable for protection grade (IP)IP41
Impact resistanceIK04
Device width76 mm
Device height72.8 mm
Device Depth41.5 mm
Min. depth of the recessed box40 mm
Compatible with Apple HomeKitYes
Compatible with Amazon AlexaYes
Compatible with Google AssistantYes
Compatible IFTTTNo
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
Installation Depth29.4 mm
Operating Temperature5-45°C
Storage temperature0-45 °C
Type of voltageCC
Power DeliveryNo
Display of markings on the connection terminalsYes
Contains battery and/or accumulatorNo
Connected ObjectYes
Method of operationZigbee
App download platformApp Store, Google Play Store
With voice commandYes
ProgrammableYes
Connection Protocol InteroperabilityYes
Possibility of connection via Internet boxYes
Supported voice assistantsGoogle Assistant, Amazon Alexa, Apple Siri
Product usage functionPower Distribution
App NameHome + Control
Programming mediumSmartphone apps

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
