BTICINO YG4916RM2 YG4916RM2 BTCINO LW-LW KEY IL AX. VENT. 2M ST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YG4916RM2 BTCINO LW-LW KEY IL AX. VENT. 2M ST

YG4916RM2

YG4916RM2

BTICINO

1 Pcs.

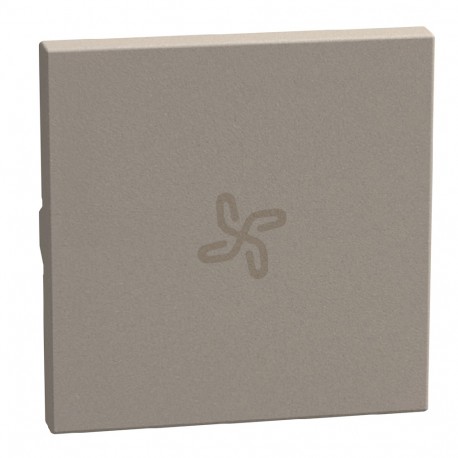

LW-LW KEY IL AX. VENT. 2M ST Light Now axial key ventilation symbol - 2 modules - Stone

Automation > Control element/cover plate for domestic switching devices
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An YG4916RM2 BTCINO LW-LW KEY IL AX. VENT. 2M ST key by Bticino serves as a modular operating element designed for integration into wall-mounted switch plates and wiring frames. Control keys provide the physical interface for operators to toggle internal circuits, light fixtures, or automation functions safely within commercial and residential building systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 45 mm
  • RAL-number (similar) (EF003882): 7008
  • Model (EF000010): One-part button
  • Material (EF002169): Plastic
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK04
  • Depth (EF000049): 8.5 mm
  • Colour (EF000007): Grey

More info

▲
Key for the aesthetic finish of the Light Now axial mechanism, with screen-printed ventilation.
ModelSingle push button
Printing/MarkingOther
Tangible/barrier-free symbolNo
UseOther
Suitable for connection of bus system pushbuttonsNo
Attachment TypeLock in position
Light Output/Control WindowYes
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
ColourGrey
RAL number (similar)7008
With label areaNo
With interchangeable lens/symbolNo
Suitable for protection grade (IP)Other
Impact resistanceIK04
Width45 mm
Height45 mm
Depth8.5 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
