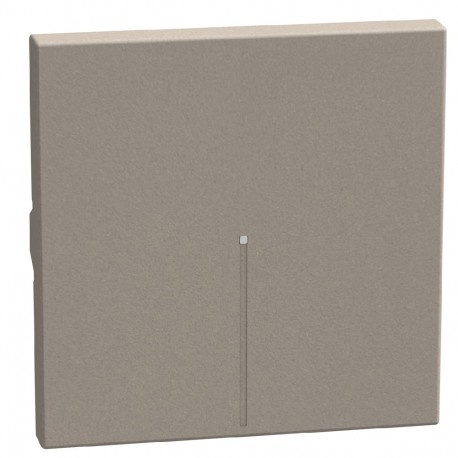

BTICINO YG4916M2 YG4916M2 BTCINO LW-KEY ILU AX. 2M ST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YG4916M2 BTCINO LW-KEY ILU AX. 2M ST

YG4916M2

YG4916M2

BTICINO

10 Pcs.

LW-KEY ILU AX. 2M ST Cover lamp 2m Light Now neutral axial key - 2 modules - Stone

Automation > Control element/cover plate for domestic switching devices
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino part number YG4916M2 is an LW-KEY ILU AX. 2M ST functioning as a one-part illuminated button control component. Switch keys and rocker caps are standard interface elements used in wall-mounted wiring configurations to operate internal switching modules and lighting controls. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 45 mm
  • RAL-number (similar) (EF003882): 7008
  • Model (EF000010): One-part button
  • Material (EF002169): Plastic
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK04
  • Depth (EF000049): 8.5 mm
  • Colour (EF000007): Grey

More info

▲
Key for the aesthetic finish of the Light Now axial mechanism, without screen printing. 2 modules
ModelSingle push button
Printing/Markingnone
Tangible/barrier-free symbolNo
UseOther
Suitable for connection of bus system pushbuttonsNo
Attachment TypeLock in position
Light Output/Control WindowYes
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
ColourGrey
RAL number (similar)7008
With label areaNo
With interchangeable lens/symbolNo
Suitable for protection grade (IP)Other
Impact resistanceIK04
Width45 mm
Height45 mm
Depth8.5 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
