View larger
Images are for illustrative purposes only. Please refer to data sheet for details

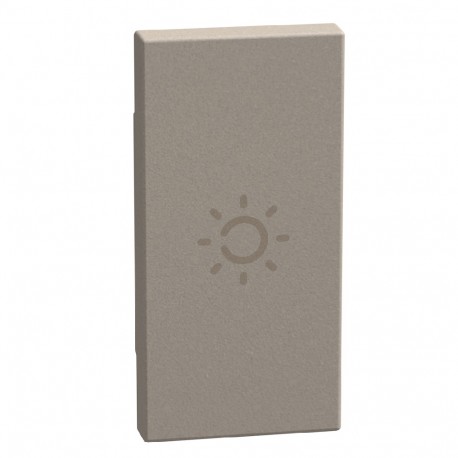

YG4916A BTCINO LW-LW KEY IL AX. 1M ST LIGHT
YG4916A
YG4916A
BTICINO
1 Pcs.
LW-LW KEY IL AX. 1M ST LIGHT
Light Now axial key light symbol - 1 module - Stone
Automation > Control element/cover plate for domestic switching devices
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Key for the aesthetic finish of the Light Now axial mechanism, with screen-printed light.
| Model | Single push button |
|---|---|
| Printing/Marking | "Light" symbol |
| Tangible/barrier-free symbol | No |
| Use | Other |
| Suitable for connection of bus system pushbuttons | No |
| Attachment Type | Lock in position |
| Light Output/Control Window | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Antibacterial treatment | No |
|---|---|
| Colour | Grey |
| RAL number (similar) | 7008 |
| With label area | No |
| With interchangeable lens/symbol | No |
| Suitable for protection grade (IP) | Other |
| Impact resistance | IK04 |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 5 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 45 mm |
| RAL-number (similar) (EF003882) | 7008 |
| Model (EF000010) | One-part button |
| Suitable for touch sensor connector for bus system (EF007802) | No |
| Material (EF002169) | Plastic |
| Utilization (EF000133) | Other |
| Monitoring window/light outlet (EF003864) | Yes |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Engage (snap) |
| Suitable for degree of protection (IP) (EF006755) | Other |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| With exchangeable lens/symbol (EF006039) | No |
| With label area (EF005040) | No |
| Scannable symbol/barrier free (EF012306) | No |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| Imprint/indication (EF003823) | Symbol "light" |
| Depth (EF000049) | 5 mm |
| Colour (EF000007) | Grey |
| Surface protection (EF000139) | Lacquered |
| Width (EF000008) | 22.5 mm |
