YG4916 BTCINO LW-KEY ILU AX. 1M ST
YG4916
YG4916
BTICINO
10 Pcs.
Automation > Control element/cover plate for domestic switching devices
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

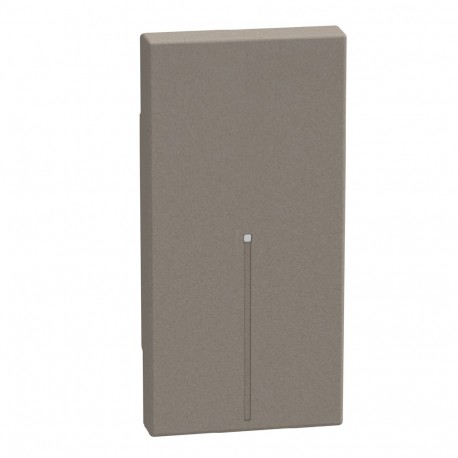

Bticino YG4916 BTCINO LW-KEY ILU AX. 1M ST operates as a single-module illuminated auxiliary button key designed for clear visibility and tactile operation in dark or complex switch arrangements. Such keys accommodate internal illumination sources to highlight control locations on wall plates.
Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 45 mm
- RAL-number (similar) (EF003882): 7008
- Model (EF000010): One-part button
- Material (EF002169): Plastic
- Monitoring window/light outlet (EF003864): Yes
- Surface finishing (EF006569): Matt Type of fastening (EF002442): Engage (snap)
- Material quality (EF001257): Thermoplastic
- Halogen free (EF000025): Yes
- With exchangeable lens/symbol (EF006039): No
- With label area (EF005040): No
- Scannable symbol/barrier free (EF012306): No
- Anti-bacterial treatment (EF023790): No
- Impact strength (EF004293): IK04
- Depth (EF000049): 5 mm
- Colour (EF000007): Grey
More info
▲| Model | Single push button |
|---|---|
| Printing/Marking | none |
| Tangible/barrier-free symbol | No |
| Use | Other |
| Suitable for connection of bus system pushbuttons | No |
| Attachment Type | Lock in position |
| Light Output/Control Window | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Antibacterial treatment | No |
|---|---|
| Colour | Grey |
| RAL number (similar) | 7008 |
| With label area | No |
| With interchangeable lens/symbol | No |
| Suitable for protection grade (IP) | Other |
| Impact resistance | IK04 |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 5 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
