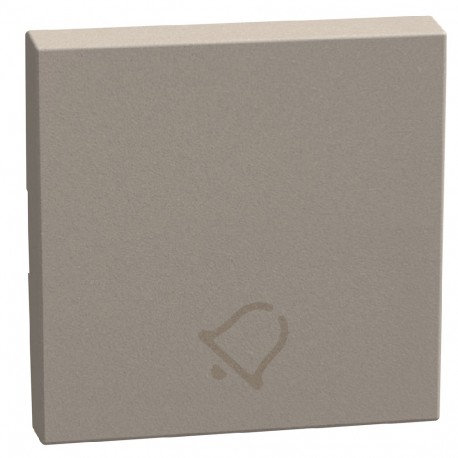

BTICINO YG4915DM2 YG4915DM2 BTCINO LW-LW IL BASC TIMB 2M ST KEY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YG4915DM2 BTCINO LW-LW IL BASC TIMB 2M ST KEY

YG4915DM2

YG4915DM2

BTICINO

1 Pcs.

LW-LW IL BASC TIMB 2M ST KEY Light Now rocker bell symbol - 2 modules - Stone

Automation > Control element/cover plate for domestic switching devices
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino YG4915DM2 BTCINO LW-LW IL BASC TIMB 2M ST KEY is a single-part button featuring a bell symbol for signaling circuits and call installations. Push buttons of this type allow visitors or operators to trigger audible alerts safely within residential or commercial property layouts.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 45 mm
  • RAL-number (similar) (EF003882): 7008
  • Model (EF000010): One-part button
  • Material (EF002169): Plastic
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK04
  • Imprint/indication (EF003823): Symbol "bell"
  • Depth (EF000049): 8.5 mm

More info

▲
Key for the aesthetic finish of the Light Now tilting mechanism, with screen-printed bell.
ModelSingle push button
Printing/Marking"Bell" symbol
Tangible/barrier-free symbolNo
UseOther
Suitable for connection of bus system pushbuttonsNo
Attachment TypeLock in position
Light Output/Control WindowYes
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
ColourGrey
RAL number (similar)7008
With label areaNo
With interchangeable lens/symbolNo
Suitable for protection grade (IP)Other
Impact resistanceIK04
Width45 mm
Height45 mm
Depth8.5 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
