BTICINO YG4915AM2 YG4915AM2 BTCINO LW-KEY LW IL BASC LIGHT 2M ST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

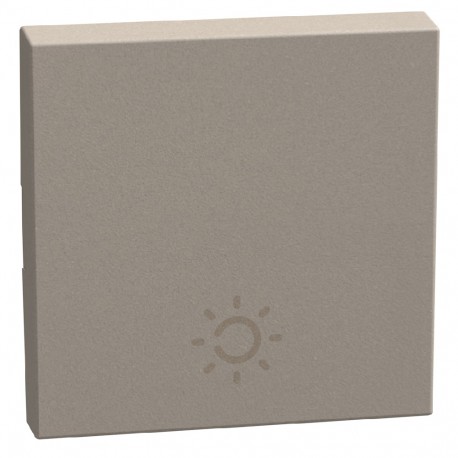

YG4915AM2 BTCINO LW-KEY LW IL BASC LIGHT 2M ST

YG4915AM2

YG4915AM2

BTICINO

1 Pcs.

LW-KEY LW IL BASC LIGHT 2M ST Light Now rocker light symbol - 2 modules - Stone

Automation > Control element/cover plate for domestic switching devices
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The YG4915AM2 BTCINO LW-KEY LW IL BASC LIGHT 2M ST is a precision-crafted light switch key designed to operate standard wall switches and push buttons smoothly in residential or commercial electrical installations. Components of this type serve as the physical user interface for interior lighting circuits, securing directly onto modular mounting frames while providing clear visual indication. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 45 mm
  • RAL-number (similar) (EF003882): 7008
  • Model (EF000010): One-part button
  • Material (EF002169): Plastic
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK04
  • Imprint/indication (EF003823): Symbol "light"
  • Depth (EF000049): 8.5 mm

More info

▲
Key for the aesthetic finish of the Light Now tilting mechanism, with screen-printed light.
ModelSingle push button
Printing/Marking"Light" symbol
Tangible/barrier-free symbolNo
UseOther
Suitable for connection of bus system pushbuttonsNo
Attachment TypeLock in position
Light Output/Control WindowYes
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
ColourGrey
RAL number (similar)7008
With label areaNo
With interchangeable lens/symbolNo
Suitable for protection grade (IP)Other
Impact resistanceIK04
Width45 mm
Height45 mm
Depth8.5 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
