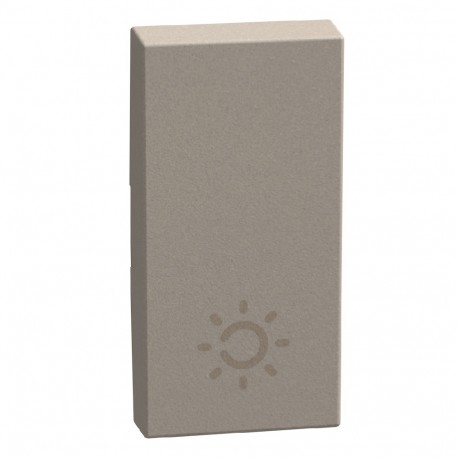

BTICINO YG4915A YG4915A BTCINO LW-LW IL BASC LIGHT 1M ST KEY View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YG4915A BTCINO LW-LW IL BASC LIGHT 1M ST KEY

YG4915A

YG4915A

BTICINO

10 Pcs.

LW-LW IL BASC LIGHT 1M ST KEY Light Now rocker key light symbol - 1 module - Stone

Automation > Control element/cover plate for domestic switching devices
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The YG4915A BTCINO LW-LW IL BASC LIGHT 1M ST KEY operates as an illuminated single-part button key marked with a light symbol for modular switching assemblies. Such actuator keys provide clear visibility in dark corridors or rooms while operating underlying electrical switching mechanisms. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 45 mm
  • RAL-number (similar) (EF003882): 7008
  • Model (EF000010): One-part button
  • Material (EF002169): Plastic
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK04
  • Imprint/indication (EF003823): Symbol "light"
  • Depth (EF000049): 8.5 mm

More info

▲
Key for the aesthetic finish of the Light Now tilting mechanism, with screen-printed light.
ModelSingle push button
Printing/Marking"Light" symbol
Tangible/barrier-free symbolNo
UseOther
Suitable for connection of bus system pushbuttonsNo
Attachment TypeLock in position
Light Output/Control WindowYes
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
ColourGrey
RAL number (similar)7008
With label areaNo
With interchangeable lens/symbolNo
Suitable for protection grade (IP)Other
Impact resistanceIK04
Width22.5 mm
Height45 mm
Depth8.5 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
