BTICINO YG4911MHAH YG4911MHAH BTCINO LWMH-KEY PERS. 1M ST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YG4911MHAH BTCINO LWMH-KEY PERS. 1M ST

YG4911MHAH

YG4911MHAH

BTICINO

5 Pcs.

LWMH-KEY PERS. 1M ST Light Now MYHOME Screen Printed Key - Up/Down, 2 functions, 1 module, stone

Automation > Control element/cover plate for domestic switching devices
DOMOTICS MY HOME

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

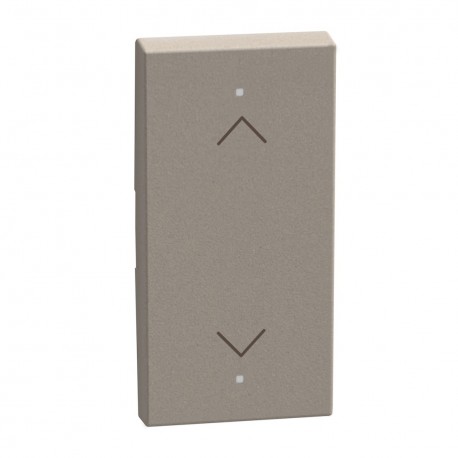

The YG4911MHAH BTCINO LWMH-KEY PERS. 1M ST is a single-module personalized button featuring arrow symbols, typically used as a blank plate or directional control interface within modular wiring frames. It offers a secure snap-in fastening mechanism for clean installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 44 mm
  • RAL-number (similar) (EF003882): 1015
  • Model (EF000010): One-part button
  • Material (EF002169): Plastic
  • Utilization (EF000133): Blank plate
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • *Anti-bacterial treatment (EF023790): No
  • Imprint/indication (EF003823): Symbol "arrows"
  • Depth (EF000049): 6.4 mm

More info

▲
MyHome Home - Light Now illuminable key, screen printed for the Up/Down function, 2 functions, 1 module, stone.
ModelSingle push button
Printing/Marking"Arrows" symbol
Tangible/barrier-free symbolNo
UseBlank plate
Suitable for connection of bus system pushbuttonsNo
Attachment TypeLock in position
Light Output/Control WindowYes
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentNo treatment
Surface FinishMate
Antibacterial treatmentNo
ColourBeige
RAL number (similar)1015
With label areaNo
With interchangeable lens/symbolNo
Width22 mm
Height44 mm
Depth6.4 mm
Operating Temperature-5-35 °C
Storage temperature-25-70 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
