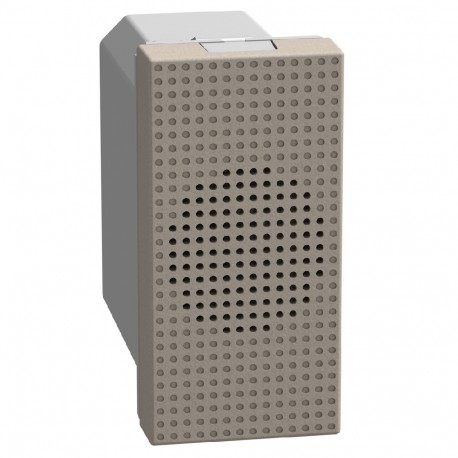

BTICINO YG4356V12 YG4356V12 BTCINO LW-BUZZER 12V 1M ST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YG4356V12 BTCINO LW-BUZZER 12V 1M ST

YG4356V12

YG4356V12

BTICINO

10 Pcs.

LW-BUZZER 12V 1M ST 12V Light Now Buzzer - 1 module - Dark

Automation > Buzzer
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino YG4356V12 is a buzzer designed to provide acoustic signaling in commercial and residential electrical installations. Buzzer units are commonly integrated into switchgear frames or control panels to deliver audible alerts, warnings, or status indications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Surface protection housing (EF024150): Untreated
  • Type of tone (EF001594): Continuous tone
  • Degree of protection (IP) (EF005474): IP20
  • Built-in transformer (EF005910): Yes
  • Loudness (EF000144): 80 dB
  • Housing material (EF001596): Plastic
  • Type of current (EF000143): AC
  • Mounting method (EF000003): Built-in
  • Nominal voltage (EF000002): 12 V
  • Housing colour (EF000136): Grey
  • Electricity consumption (EF000587): 5 A

More info

▲
Buzzers - 12V - 5VA - 80 dB - Screw terminal - To be combined with support and decorative plate - 1 module.
Type of currentAC
Current Consumption5 A
Protection Class (IP)IP20
Volume80 dB
Housing materialPlastic
Housing material qualityOther
Housing protectionNo treatment
Housing colorGrey
Sound TypeContinuous tone
Type of mountingInstallation
Built-in transformerYes
Width22.5 mm
Height45 mm
Depth43 mm
Installation Depth35 mm
Impact resistanceIK04
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
frequency50-60 Hz
RAL number7008
Halogen-freeYes
Antibacterial treatmentNo
Connection MethodScrew-on terminal
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Volume controlYes
