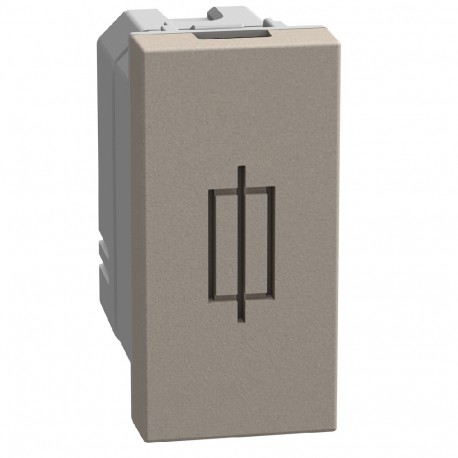

BTICINO YG4321 YG4321 BTCINO LW-FUSE HOLDER 13A 1M ST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YG4321 BTCINO LW-FUSE HOLDER 13A 1M ST

YG4321

YG4321

BTICINO

1 Pcs.

LW-FUSE HOLDER 13A 1M ST Light Now Fuse Holder - 1 module - Stone

Automation > Miniature fuse holder
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A front-mounting fuse holder built to house electrical circuit protection devices safely inside industrial control panels. The Bticino YG4321 provides reliable mechanical retention and connectivity for standard protective links in AC environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of current: AC
  • Mounting method: Front mounting
  • Rated current: 13 A
  • Dimensions glass fuse: 6.3x32 mm
  • Rated voltage: 250 V

More info

▲
Fuse holder for 5 x 20 fuses or 6.3 x 32 fuses - max. 10 A - 1 module
Connection MethodOther
Type of mountingFront mount
Type of currentAC
Nominal current13 A, 10-13 A
Nominal voltage250 V
Miniature Fuse Dimensions6.3x32 mm
Width22.5 mm
Height45 mm
Depth39 mm
Installation Depth31 mm
Impact resistanceIK04
Protection Class (IP)IP20
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
Nominal Voltage230-250 V
frequency50-60 Hz
Neutral MandatoryNo
Display of markings on the connection terminalsNo
ColourGrey
RAL number7008
Halogen-freeYes
Antibacterial treatmentNo
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
