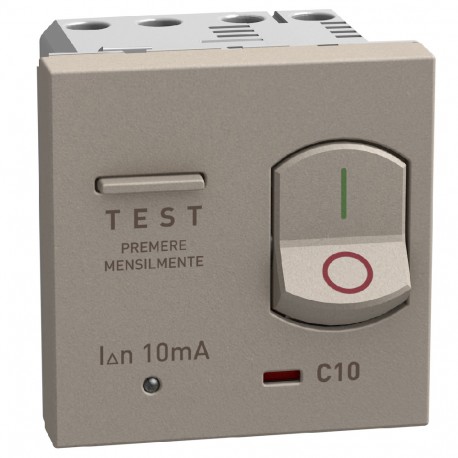

YG4305A10 BTCINO LW-M+DIF 1P+N 10A 10MA 2M ST
YG4305A10
YG4305A10
BTICINO
1 Pcs.
LW-M+DIF 1P+N 10A 10MA 2M ST
Automatic circuit breaker + differential Light Now - 10A - 2 modules - Stone
Automation > Earth leakage circuit breaker
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Automatic circuit breakers and differential - It has a protected pole - Open and closed contact indicator - Test button - 10A - Breaking power: 3,000A - 2 modules - Stone
| Number of poles (total) | 1 |
|---|---|
| Number of protected poles | 1 |
| Nominal voltage | 230 V |
| Nominal insulation voltage Ui | 253 V |
| Assigned Voltage Peak Resistance (Uimp) | 4 kV |
| Nominal current | 10 A |
| Fault Current Rating | 10 A |
| Fault Current Type | AC |
| Power Limitation Class | 1 |
| Assigned cutting capacity according to EN 61009 | 1500 kA |
| Rated breaking power according to IEC 60947-2 | 1500 kA |
| Assigned Cutting Power Icn according to EN 61009-1 | 1500 kA |
| Disconnect feature | No delay |
| Current resistance | 3000 kA |
| Type of voltage | AC |
| frequency | 50/60 Hz |
| Shot curve | C |
| Neutral Conductor Coupling | Yes |
| With locking device | No |
| Ambient temperature during operation | -5-35 °C |
| Width in number of modular spaces | 45 |
| Installation Depth | 40 mm |
|---|---|
| Protection against untimely shooting | No |
| Protection Class (IP) | IP20 |
| Solid Connectable Conductor Section | 2.5-3 mm² |
| Connectable conductor section | 1.5-2.5 mm² |
| Width | 45 mm |
| Height | 45 mm |
| Depth | 50 mm |
| Impact resistance | IK04 |
| Storage temperature | -5-35 °C |
| Nominal Voltage | 110-230 V |
| Direction of the electricity supply | On the back of the product |
| Display of markings on the connection terminals | No |
| Compliant with commissioning tests (1000 V) | No |
| Colour | Grey |
| RAL number | 7008 |
| Halogen-free | Yes |
| Connection Method | Screw-on terminal |
| Connection type | Other |
| Label Space/Print Area | No |
| Feature Name | Feature Value |
|---|---|
| Frequency (EF005455) | 50/60 Hz |
| Connectable conductor cross section solid-core (EF007337) | 2.5 mm² |
| Ambient temperature during operating (EF007515) | -5 °C |
| Degree of protection (IP) (EF005474) | IP20 |
| Leakage current type (EF002560) | AC |
| Voltage type (EF000187) | AC |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Surge current capacity (EF002564) | 3000 kA |
| Anti-nuisance tripping version (EF009497) | No |
| Rated short-circuit breaking capacity according to IEC 60947-2 (EF006065) | 1500 kA |
| Rated short-circuit breaking capacity according to EN 61009 (EF012628) | 1500 kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981) | 1500 kA |
| Rated fault current (EF002358) | 10 A |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Number of protected poles (EF005548) | 1 |
| Built-in depth (EF000218) | 40 mm |
| Number of poles (total) (EF008618) | 1 |
| Width in number of modular spacings (EF002950) | 45 |
| Rated insulation voltage Ui (EF001366) | 253 V |
| With interlocking device (EF007385) | No |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Disconnection characteristic (EF012587) | Undelayed |
| Rated current (EF000227) | 10 A |
| Current limiting class (EF002568) | 1 |
| Release characteristic (EF000889) | C |
| Rated voltage (EF000228) | 230 V |
