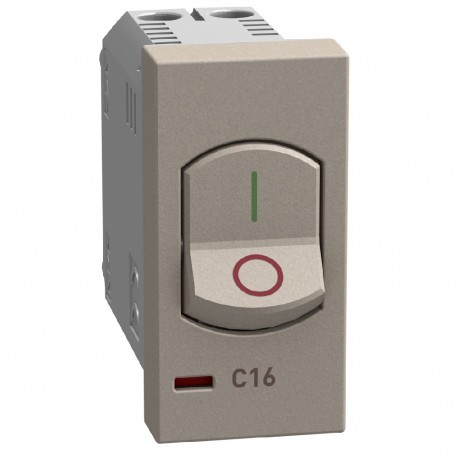

BTICINO YG4301A16 YG4301A16 BTCINO LW-MAG 1P+N 16A 1M ST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YG4301A16 BTCINO LW-MAG 1P+N 16A 1M ST

YG4301A16

YG4301A16

BTICINO

1 Pcs.

LW-MAG 1P+N 16A 1M ST Light Now automatic circuit breaker - 16A - 1 module - Stone

Automation > Miniature circuit breaker (MCB)
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Bticino YG4301A16 circuit protective device is utilized in electrical distribution boards to safeguard wiring and connected loads from overcurrent and short-circuit conditions. These compact units ensure reliable automated tripping during fault events.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 2.5 mm²
  • Ambient temperature during operating (EF007515): -5 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): No
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 1
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 40 mm
  • Number of poles (total) (EF008618): 1
  • Width in number of modular spacings (EF002950): 22.5
  • Rated insulation voltage Ui (EF001366): 253 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²
  • Rated current (EF000227): 16 A

More info

▲
Automatic circuit breakers - It has a protected pole - Open and closed contact indicator - 16A - Breaking power: 3,000A - 1 module - Stone.
Installation Depth40 mm
Shot curveC
Number of poles (total)1
Number of protected poles1
Nominal current16 A
Nominal voltage230 V
Nominal insulation voltage Ui253 V
Assigned Voltage Peak Resistance (Uimp)4 kV
Type of voltageAC
frequency50-60 Hz
Power Limitation Class1
Flush mountingYes
Neutral Conductor CouplingYes
Additional equipment possibleNo
Width in number of modular spaces22.5
Protection Class (IP)IP20
Ambient temperature during operation-5-35 °C
Connectable conductor section1.5-2.5 mm²
Solid Connectable Conductor Section2.5-3 mm²
Explosion protectionNo
Width22.5 mm
Height45 mm
Depth50 mm
Impact resistanceIK04
Storage temperature-10-70 °C
Nominal Voltage110-230 V
Direction of the electricity supplyOn the back of the product
Display of markings on the connection terminalsNo
ColourGrey
RAL number7008
Halogen-freeYes
Connection MethodScrew-on terminal
Connection typeOther
Label Space/Print AreaNo
Type of mountingRecessed mounted (plaster)
