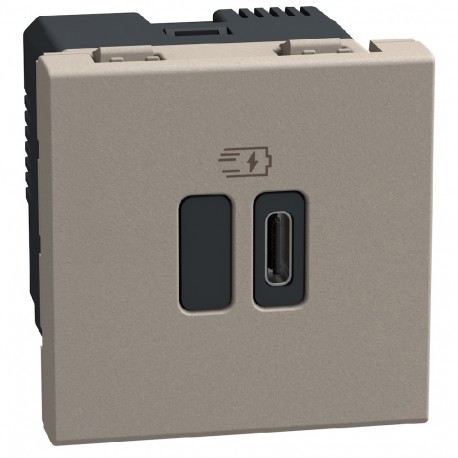

YG4294 BTCINO LW- BASE HI-FI 1M ST
YG4294
YG4294
BTICINO
10 Pcs.
Automation > Insert/cover for communication technology
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Bticino YG4294 (YG4294 BTCINO LW- BASE HI-FI 1M ST) acts as a high-fidelity audio base insert designed to support specialized sound connection hardware in flush wall setups. Hi-fi base units allow high-end audio distribution channels to integrate directly into architectural wiring frameworks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With dust cover (EF003893): No
- Material (EF002169): Plastic
- Shielded buses (EF002444): No
- Surface finishing (EF006569): Matt
- Shielded housing (EF002445): No
- Type of fastening (EF002442): Engage (snap)
- Material quality (EF001257): Thermoplastic
- Halogen free (EF000025): Yes
- Mounting method (EF000003): Flush mounted
- With imprint (EF004048): No
- Number of modules (module system) (EF009573): 1
- Transparent (EF006243): No
- With lighting (EF003829): No
- Min. depth of built-in installation box (EF012278): 38 mm
- Luster terminal (EF003868): No
- Surface protection (EF000139): Lacquered
More info
▲| Model | Other |
|---|---|
| Number of USB-A ports | 0 |
| Number of USB-C ports | 1 |
| Operating voltage | 220-240 V |
| frequency | 50-60 Hz |
| Maximum output current | 3000 mA |
| Output voltage | 5-20 V |
| Power consumption | 0.074 W |
| Connection Method | Screw-on terminal |
| Type of mounting | Recessed mounted (plaster) |
| Colour | Grey |
| RAL number | 7008 |
| Device width | 45 mm |
| Device height | 45 mm |
| Device Depth | 41 mm |
| Min. depth of the recessed box | 43 mm |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Antibacterial treatment | No |
|---|---|
| Wireless | No |
| Installation Depth | 33 mm |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Type of voltage | AC |
| Power Delivery | Yes |
| USB Power Output | 45 |
| Nominal current | 0.8-0.8 A |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Halogen-free | Yes |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
