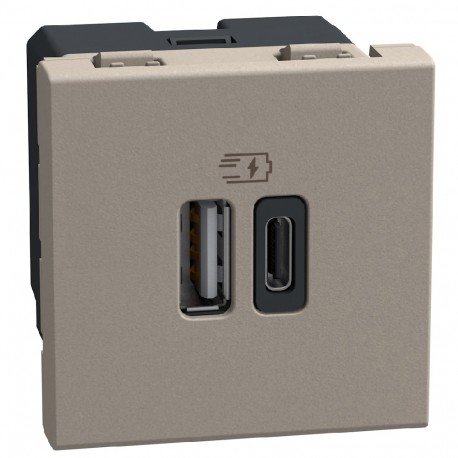

BTICINO YG4287C2 YG4287C2 BTCINO LW-BASE USB A+C 3A 15W 2M ST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YG4287C2 BTCINO LW-BASE USB A+C 3A 15W 2M ST

YG4287C2

YG4287C2

BTICINO

1 Pcs.

LW-BASE USB A+C 3A 15W 2M ST Double USB charger base Light Now Type A+C - 2 modules - Stone

Automation > USB power supply
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A YG4287C2 BTCINO LW-BASE USB A+C 3A 15W 2M ST functions as a flush-mounted power supply designed to deliver low-voltage charging current through integrated USB ports. Such units are standard elements in modern electrical installations, providing neat and accessible device power interfaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 41 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 2
  • Min. depth of built-in installation box (EF012278): 43 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.083 W
  • Device width (EF008808): 45 mm
  • Device height (EF008809): 45 mm
  • Colour (EF000007): Grey
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 7008

More info

▲
Universal USB double chargers - Type A+C - 3A - 5Vdc - 15W - Compliant with IEC62368-1 standard - Allows the charging of mobile phones, tablets, smartphones, MP3, MP4 - Standby consumption 0.05 W - Class II TBTS - Complies with the EEC directive on the harmonization of the standard for charging portable terminals and the reduction of mobile chargers - To be combined with stand and decorative plate - 2 modules.
ModelOther
Number of USB-A ports1
Number of USB-C ports1
Operating voltage100-240 V
frequency50-60 Hz
Maximum output current3000 mA
Output voltage5-5 V
Power consumption0.083 W
Connection MethodScrew-on terminal
Type of mountingRecessed mounted (plaster)
ColourGrey
RAL number7008
Device width45 mm
Device height45 mm
Device Depth41 mm
Min. depth of the recessed box43 mm
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Antibacterial treatmentNo
WirelessNo
Installation Depth33 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
Power DeliveryNo
USB Power Output15
Nominal current0.5-0.5 A
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
