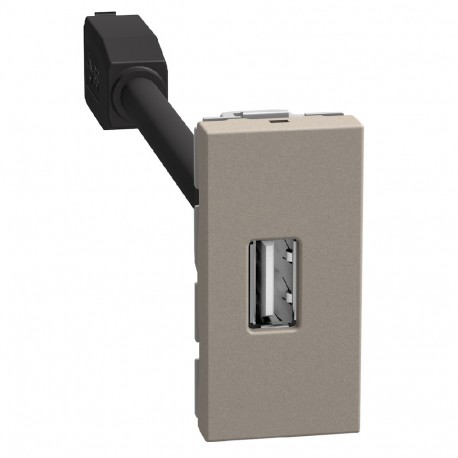

BTICINO YG4285P YG4285P BTCINO LW-DATABASE USB TO 1M ST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YG4285P BTCINO LW-DATABASE USB TO 1M ST

YG4285P

YG4285P

BTICINO

1 Pcs.

LW-DATABASE USB TO 1M ST USB Type A Light Now Database -1 module - Stone

Automation > Data communication connection box copper (twisted pair)
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino YG4285P BTCINO LW-DATABASE USB TO 1M ST is a USB data communication socket insert used to integrate peripheral device connections into standard architectural wiring frames. These modules provide convenient wall-mounted USB interface points for modern electronic devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Duct installation (EF002440): No
  • With dust cover (EF003893): No
  • Colour coding (EF007758): No
  • Degree of protection (IP) (EF005474): IP20
  • With label space (EF003456): No
  • Shielded buses (EF002444): No
  • Shielded housing (EF002445): No
  • Separate earthing connection (EF002500): No
  • Type of fastening (EF002442): Engage (snap)
  • Floor box/subfloor mounted (EF003455): No
  • Number of modules (module system) (EF009573): 1
  • With terminal resistor (EF005033): No
  • Mechanical coding (EF002910): No
  • RAL-number (EF000116): 7008
  • Type of connector (EF002935): USB
  • Surface mounting (EF003681): No

More info

▲
Pre-connectorized USB type A databases to connect USB devices (printer, scanner, external hard drive, etc.) - With 150mm cable and 2 female connectors - To be combined with support and decorative plate - 1 module.
Surface mountingNo
Flush mountingYes
Duct InstallationNo
Ground-mounted/underground boxNo
Attachment TypeLock in position
Type of mountingBasic element with center cover plate, Recessed mounted (plaster)
Connector TypeUSB
With sockets/couplingsYes
Suitable for the number of sockets/couplings1
categoryOther
ColourGrey
RAL number7008
Connection MethodOther
Shielded plugsNo
Shielded housingNo
Separate grounding connectionNo
With text boxNo
Compatible with third-party coversNo
Separate cable strain reliefNo
Shielding Connection Mount Typenone
Exit AddressStraight
With dust protectionNo
With termination resistanceNo
Protection Class (IP)IP20
Mechanical CodingNo
Color codingNo
Device width22.5 mm
Device height45 mm
Device Depth37 mm
Number of modules (in case of modular design)1
Installation Depth28.5 mm
Impact resistanceIK04
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Display of markings on the connection terminalsNo
Halogen-freeYes
Antibacterial treatmentNo
Type of cable entry feedthroughsNot applicable
Cable HolderNot applicable
