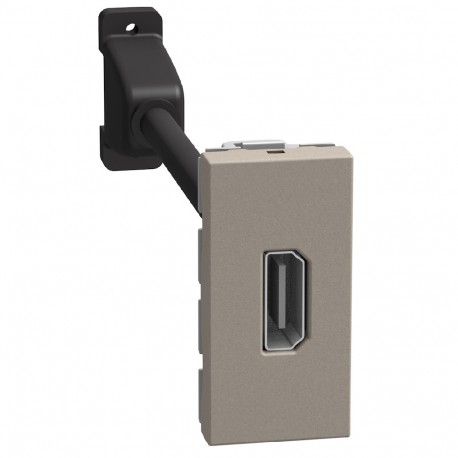

YG4284P BTCINO LW-BASE VIDEO HDMI 1M ST
YG4284P
YG4284P
BTICINO
1 Pcs.
LW-BASE VIDEO HDMI 1M ST
HDMI Light Now Database - 1 Module - Stone
Automation > Data communication connection box copper (twisted pair)
MATIX MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Facilitating multimedia display connectivity, the Bticino YG4284P video HDMI connector module integrates high-definition audio and video ports into standard modular wall plates.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Duct installation (EF002440): No
- With dust cover (EF003893): No
- Colour coding (EF007758): No
- Degree of protection (IP) (EF005474): IP20
- With label space (EF003456): No
- Shielded buses (EF002444): No
- Shielded housing (EF002445): No
- Separate earthing connection (EF002500): No
- Type of fastening (EF002442): Engage (snap)
- Floor box/subfloor mounted (EF003455): No
- Number of modules (module system) (EF009573): 1
- With terminal resistor (EF005033): No
- Mechanical coding (EF002910): No
- RAL-number (EF000116): 7008
- Surface mounting (EF003681): No
- Separate strain relief (EF002450): No
More info
▲
HDMI 2.0 audio/video base that allows you to transmit high-definition digital audios or video transmissions between a source (computer, DVD player, etc.) to a compatible receiver (TV, video projector, etc.) - To ensure a high-quality result, the connection between the two devices should not exceed a certain distance - For long distances, it is necessary to provide a reinforcement system. With 150mm cable and 2 female connectors - To be combined with support and decorative plate - 1 module.
| Surface mounting | No |
|---|---|
| Flush mounting | Yes |
| Duct Installation | No |
| Ground-mounted/underground box | No |
| Attachment Type | Lock in position |
| Type of mounting | Basic element with center cover plate, Recessed mounted (plaster) |
| Connector Type | Other |
| With sockets/couplings | Yes |
| Suitable for the number of sockets/couplings | 1 |
| category | Other |
| Colour | Grey |
| RAL number | 7008 |
| Connection Method | Other |
| Shielded plugs | No |
| Shielded housing | No |
| Separate grounding connection | No |
| With text box | No |
| Compatible with third-party covers | No |
| Separate cable strain relief | No |
| Shielding Connection Mount Type | none |
| Exit Address | Straight |
|---|---|
| With dust protection | No |
| With termination resistance | No |
| Protection Class (IP) | IP20 |
| Mechanical Coding | No |
| Color coding | No |
| Device width | 22.5 mm |
| Device height | 45 mm |
| Device Depth | 37 mm |
| Number of modules (in case of modular design) | 1 |
| Installation Depth | 28.5 mm |
| Impact resistance | IK04 |
| Operating Temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Display of markings on the connection terminals | No |
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Type of cable entry feedthroughs | Not applicable |
| Cable Holder | Not applicable |
