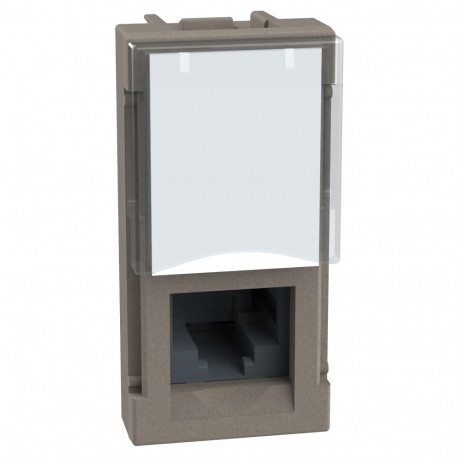

BTICINO YG4279C5E YG4279C5E BTCINO LW-BASE RJ45 CAT5E UTP 1M ST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YG4279C5E BTCINO LW-BASE RJ45 CAT5E UTP 1M ST

YG4279C5E

YG4279C5E

BTICINO

10 Pcs.

LW-BASE RJ45 CAT5E UTP 1M ST RJ45 Light Now Base - Cat.5E - UTP - 1 module - Stone

Automation > Data communication connection box copper (twisted pair)
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Bticino YG4279C5E provides a dual Cat5e UTP network connection module engineered for versatile communication setups. Modular data inserts of this type allow network administrators to terminate twisted-pair cabling securely inside standard wiring device configurations.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Duct installation: No
  • With dust cover: Yes
  • Colour coding: Yes
  • Degree of protection (IP): IP20
  • With label space: Yes
  • Shielded buses: No
  • Shielded housing: No
  • Separate earthing connection: No
  • Connection type: Insulation displacement connector
  • Type of fastening: Engage (snap)
  • Floor box/subfloor mounted: No
  • Number of modules (module system): 1
  • With terminal resistor: No
  • Mechanical coding: No
  • RAL-number: 7008
  • Type of connector: 2x RJ45 8(8)

More info

▲
RJ-45 Databases - Cat 5E - UTP - Quick connect bases without the need for tools - Contacts marked with double color code - 1 module - To be combined with support and decorative plate - Stone
Surface mountingNo
Flush mountingYes
Duct InstallationNo
Ground-mounted/underground boxNo
Attachment TypeLock in position
Type of mountingBasic element with center cover plate, Recessed mounted (plaster)
Connector Type2x RJ45 8(8)
With sockets/couplingsYes
Suitable for the number of sockets/couplings1
category5E
ColourGrey
RAL number7008
Connection MethodInsulation Displacement Connector
Shielded plugsNo
Shielded housingNo
Separate grounding connectionNo
With text boxYes
Compatible with third-party coversNo
Separate cable strain reliefNo
Shielding Connection Mount Typenone
Exit AddressStraight
With dust protectionYes
With termination resistanceNo
Protection Class (IP)IP20
Mechanical CodingNo
Color codingYes
Device width22.5 mm
Device height45 mm
Device Depth37 mm
Number of modules (in case of modular design)1
Installation Depth25.5 mm
Impact resistanceIK04
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Display of markings on the connection terminalsNo
Halogen-freeYes
Antibacterial treatmentNo
Type of cable entry feedthroughsFlexible to cut
Cable HolderCable glands
