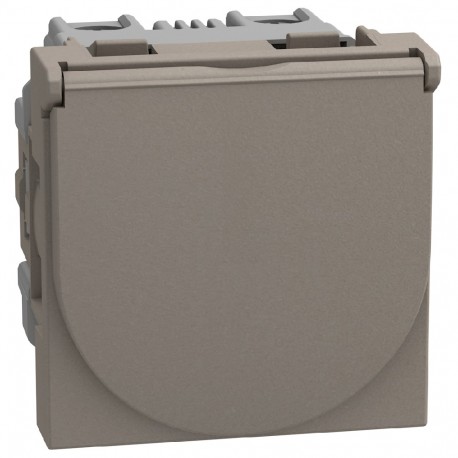

BTICINO YG4141P YG4141P BTCINO LW-BASE 2P+T W/LID 16A 2M ST View larger
Images are for illustrative purposes only. Please refer to data sheet for details

YG4141P BTCINO LW-BASE 2P+T W/LID 16A 2M ST

YG4141P

YG4141P

BTICINO

1 Pcs.

LW-BASE 2P+T W/LID 16A 2M ST 2P+T base with lid Light Now - 16A/250V - screw connection - Stone - 2 modules

Automation > Socket outlet
MATIX MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The YG4141P BTCINO LW-BASE 2P+T W/LID 16A 2M ST is a protective power socket insert equipped with an integrated hinged lid for enhanced safety in demanding operating areas. Such covered outlets are typically deployed where moisture, dust, or accidental contact protection is required for temporary device connections. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection: No
  • Nominal current: 16 A
  • Rotated central insert: No
  • Material quality: Thermoplastic
  • Mounting method: Flush mounted
  • Special power supply: EV006426
  • Connection type: Screwed terminal
  • Fault current protection: No
  • Nominal voltage: 250 V
  • Number of modules (module system): 2
  • Compatible with Apple HomeKit: No
  • Eject-mechanism: No
  • Compatible with Amazon Alexa: No
  • Compatible with Google Assistant: No
  • Number of ports USB-C: 0
  • Min. depth of built-in installation box: 41.5 mm

More info

▲
2P+T bases with cover - 16A - 250 Vac - Screw connection - With protective shutters - 2 modules - To combine with support and decorative plate - Stone.
ModelPower socket with protective contact CEE 7/3 (type F)
Neutral Conductor CouplingNo
Protective contactOther
Number of active (round) contacts1
Number of active contacts (drawings)0
Number of active contacts (square)0
Type of mountingBasic element with center cover plate, Recessed mounted (plaster)
With signal lampNo
Number of USB-A ports0
Number of USB-C ports0
Number of sockets1
Phase-separated power outletsNo
Number of modules (in case of modular design)2
Number of interchangeable sockets0
Number of phases1
Printing/Markingnone
Connection MethodScrew-on terminal
With flip-top lidNo
With enhanced contact protectionYes
Label Space/Print AreaNo
ColourGrey
RAL number (similar)7008
Metallic colorNo
TransparentYes
LockableNo
Expulsion mechanismNo
Isolated installationNo
With functional lightingNo
With adjustable lightingNo
Surge protectionNo
Residual Current DeviceNo
With microfusionNo
Special power supplynone
Attachment TypeHemming
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
With loop functionYes
Number of loops1
With on/off switchNo
Switching element colorGrey
Rotated center insertNo
Nominal intensity16 A
Nominal Voltage250 V
Degree of protection (IP), plug connectedIP20
frequency50-60 Hz
Suitable for protection grade (IP)IP20
Impact resistanceIK04
Device width45 mm
Device height45 mm
Device Depth41.5 mm
Min. depth of the recessed box41.5 mm
Compatible with Apple HomeKitNo
Compatible with Amazon AlexaNo
Compatible with Google AssistantNo
Compatible IFTTTNo
With Wi-Fi signal repeaterNo
With built-in bluetooth speakerNo
For server conditions according to VDENo
Complies with UK Building Regulations, Part MNo
Installation Depth31.5 mm
Operating Temperature-5-35 °C
Storage temperature-10-70 °C
Type of voltageAC
Power DeliveryNo
Display of markings on the connection terminalsNo
PrewiredNo
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
Cable HolderCable glands
Connected ObjectNo
App download platformNot applicable
Programming mediumNot applicable
With voice commandNo
ProgrammableNo
Connection Protocol InteroperabilityNo
Possibility of connection via Internet boxNo
Product usage functionPower Distribution

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
